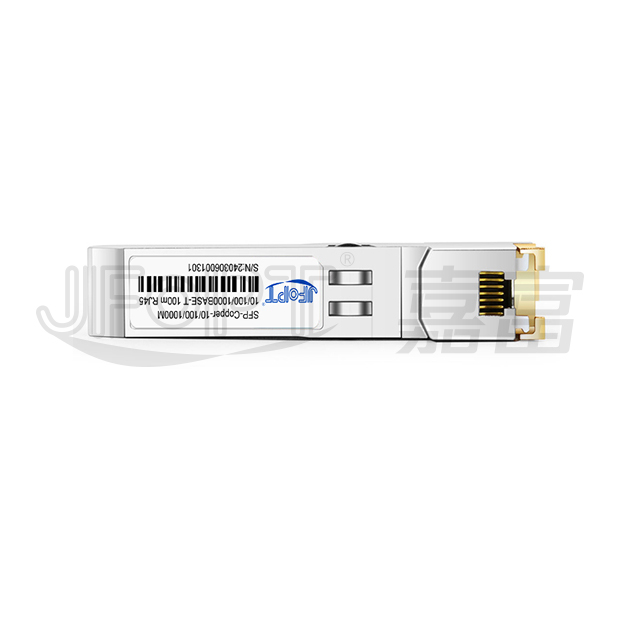

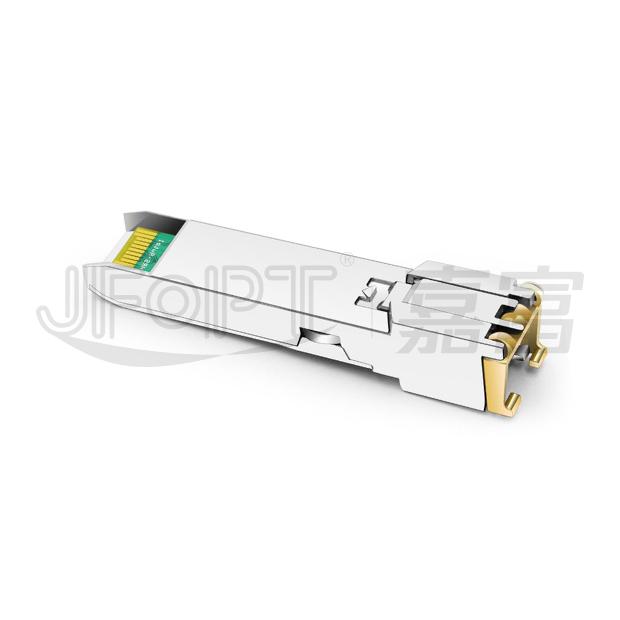

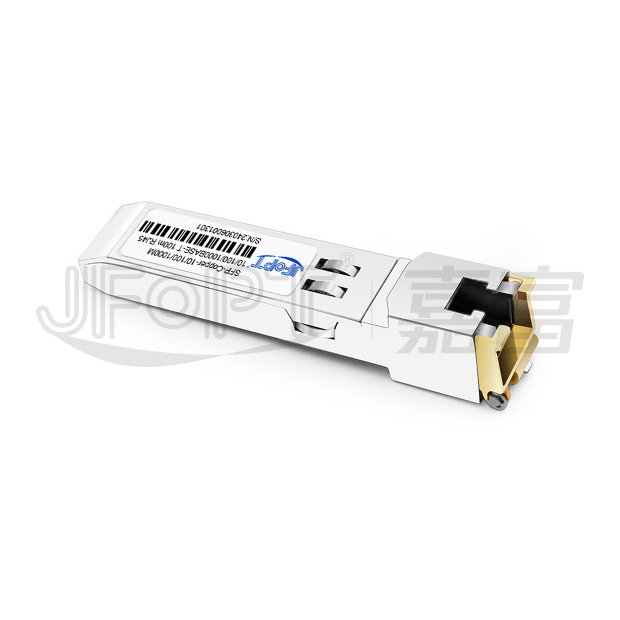

SFP-Copper 10/100/1000BASE-T 100m RJ45光模块
10/100/1000Mbps Copper SFP光模块
型   号:JFTSM-SFPCO-1A-01-RJ45-SGMII
分享:
购买咨询
产品详情
相关资料

产品型号
JFTSM-SFPCO-1A-01-RJ45-SGMII
工厂品牌
JFOPT嘉富
封装形式
SFP
接口类型
RJ45
最高总速率
1000Mbps
10G 最大传输距离
100m
支持热插拔
YES
工作电压
3.3V
功耗
1.05 W
支持协议
SFP MSA IEEE Std 802.3
工作温度(商业级)
0℃~+70℃
储存温度(商业级)
-40℃~+85℃
工作温度(工业级)
-40℃~+85℃
储存温度(工业级)
-40℃~+85℃




生产线介绍
PRODUCTION LINE INTRODUCTION


JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。





产品介绍
PRODUCT PRESENTATION


JFOPT SFP-Copper 10/100/1000BASE-T 100m RJ45是一款多功能小型可插拔(SFP)光模块,适用于10/100/1000BASE-T应用场景,基于SFP多源协议(MSA)标准开发。该光模块符合IEEE STD 802.3规定的千兆以太网标准,可确保在10/100/1000BASE-T网络中的可靠运行。

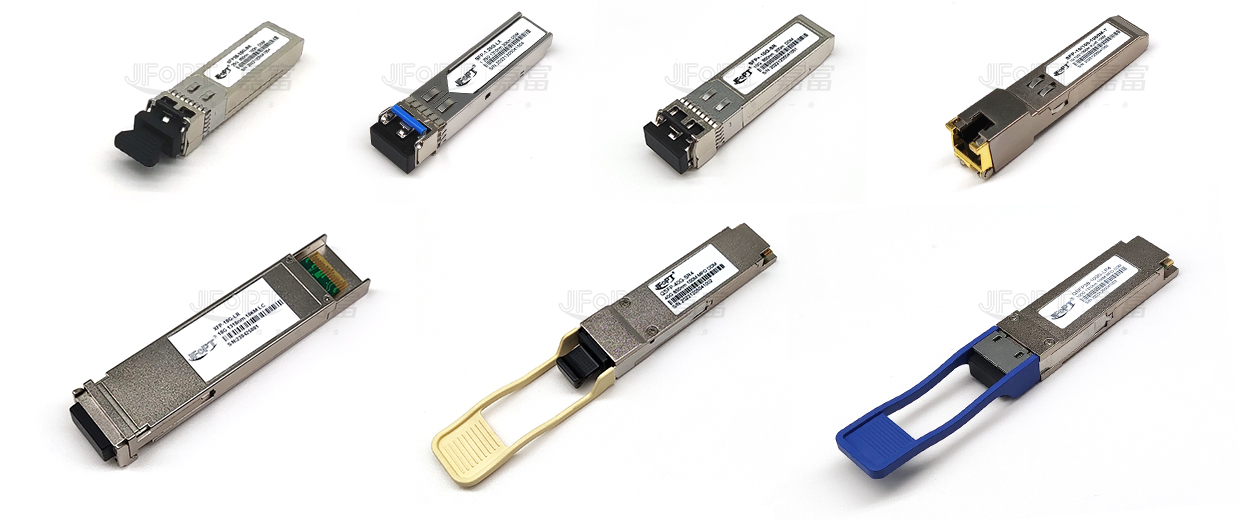

光模块系列产品
TRANSCEIVER SERIES PRODUCTS

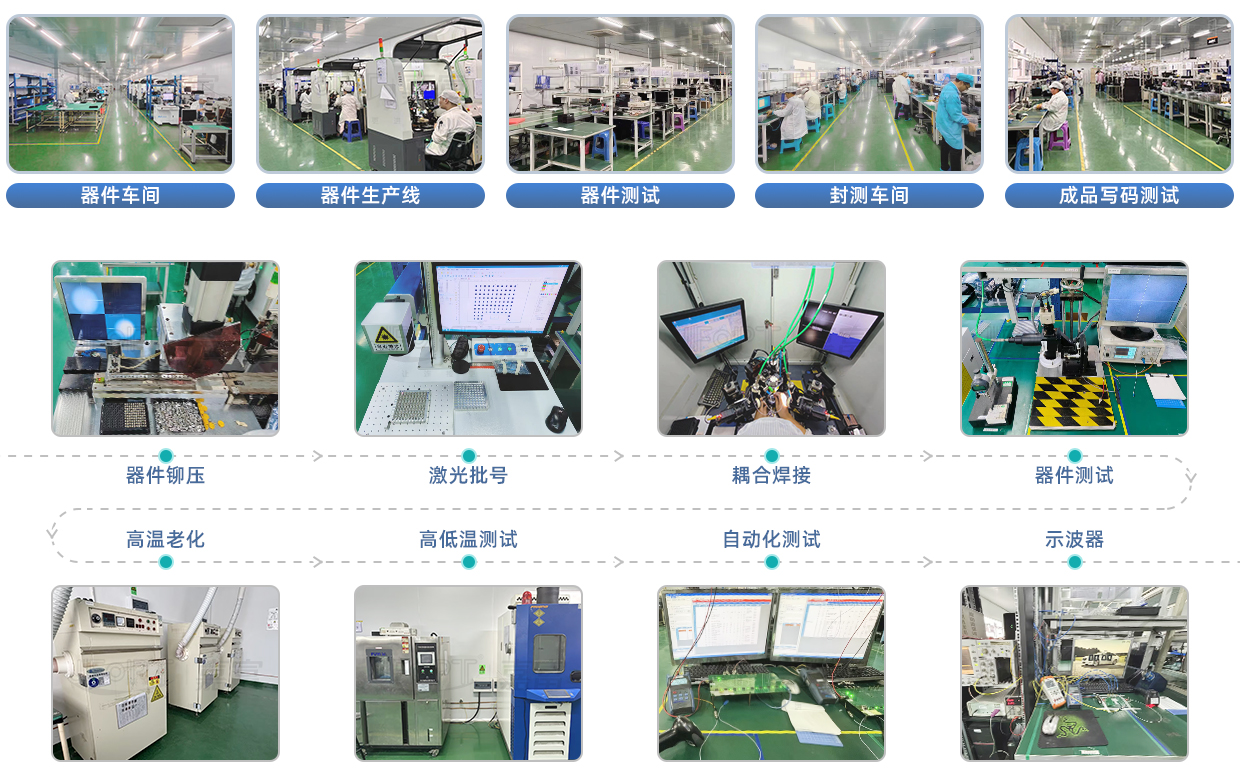

生产及检测设备
PRODUCTION & TESTING EQUIPMENT






产品特点
FEATURES

Support 10/100/1000BASE-T Operation in Host Systems with SGMII interface 100m transmission over Cat 5 UTP Cable
Hot-Pluggable SFP Footprint Fully metallic enclosure for low EMI

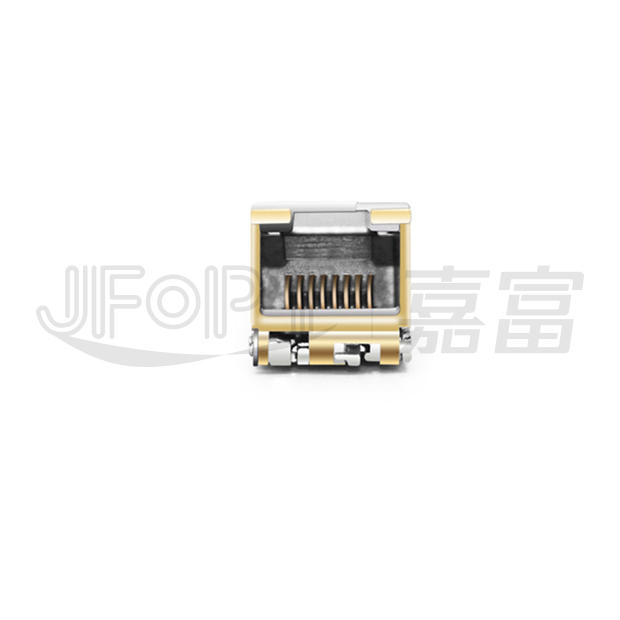

Low power dissipation (1.05 W typical) Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus Detailed product information in EEPROM
Operating Case Temperature
Standard:0℃~70℃
Industrial: -40℃~85℃
Compliant with SFP MSA
Compliant with IEEE Std 802.3




应用范围
APPLICATION






符合标准
STANDARD COMPLIANCE






订购信息
ORDER INFORMATION

Part No. Data Rate Link type Distance RX_LOS Temp.
JFTSM-SFPCO-1A-01-RJ45-SGMII Line side:
10/100/1000BASE-T preferred Masters Host side: SGMII
Cat5 100m YES(only 1G) Standard

Note: 10/100/1000Mbps enable the auto-negotiation, preferred Master.




绝对最大额定值
ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Min. Typ Max.
Maximum supply voltage Vcc -0.5 - 4.0
Storage temperature TS -40 - 85




正常工作条件
NORMAL OPERATING CONDITION

Parameter Symbol Min Typ Max Units
Operating case temperature Tc 0 - 70 °C
-40 - 85
Supply voltage Vcc 3.15 3.3 3.45 V
Date rate - 10 - 1000 Mbps




电气特性
ELECTRICAL CHARACTERISTICS

Parameter Symbol Min Typ Max Units Notes/Conditions

+3.3 Volt Electrical Power Interface

Supply current Icc - 300 350 mA -
Input voltage Vcc 3.13 3.3 3.45 V -
Surge vurrent Isurge - - 30 mA -

Low-Speed Signals, Electronic Characteristics

SFP output low VOL 0 - 0.5 V 4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP output high VOH host_Vcc-0.5 - host_Vcc+0.3 V 4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP input low VIL 0 - 0.8 V 4.7k to 10k pull-up to Vcc, measured at SFP side of connector
SFP input high VIH 2 - Vcc + 0.3 V 4.7k to 10k pull-up to Vcc, measured at SFP side of connector

 High-Speed Electrical Interface, Transmission Line-SFP

Line baud rates fL - 125 - MHz MLT-3 encoding per IEEE802.3u
TX output impedance Zout, TX
-
100 - Ohm Differential, AC coupled Internally
RX input impedance Zin, RX - 100 - Ohm Differential, AC coupled Internally

 High-Speed Electrical Interface, Host-SFP

Single ended data input swing Vin 250 - 1200 mV Single ended
Single ended data output swing Vout 300 - 1000 mV Single ended
Rise/Fall time Tr, Tf - 175 - psec 20%-80%
TX Iinput impedance Zin - 50 - Ohm Single ended
   RX output impedance  Zout - 50 - Ohm Single ended




一般规格
GENERAL SPECIFICATIONS

Parameter Symbol Min Typ Max Units Notes/Conditions
Data rate - 10 - 1000 Mbps -
Distance - - - 100 m Category 5 UTP. BER <10-12




引脚说明
PIN DESCRIPTIONS

Pin No. Name Function Plug Seq. Notes
1 VeeT Transmitter Ground 1 -
2 TX Fault Transmitter Fault Indication 3 Not used
3 TX Disable Transmitter Disable 3 1
4 MOD-DEF2 Module Definition 2 3 2
5 MOD-DEF1 Module Definition 1 3 2
6 MOD-DEF0 Module Definition 0 3 2
7 Rate Select Not Connected 3 -
8 LOS Loss of Signal 3 Not Used
9 VeeR Receiver Ground 1 -
10 VeeR Receiver Ground 1 -
11 VeeR Receiver Ground 1 -
12 RD- Inv. Received Data Out 3 -
13 RD+ Received Data Out 3 -
14 VeeR Receiver Ground 1 -
15 VccR Receiver Power 2 -
16 VccT Transmitter Power 2 -
17    VeeT    Transmitter Ground 1 -
18     TD+ Transmit Data In 3 -
19     TD-   Inv. Transmit Data In 3 -
20    VeeT    Transmitter Ground 1 -

1. PHY disabled on TDIS > 2.0V or open, enabled on TDIS < 0.8V, used to reset the module.
2. Should be pulled up with 4.7k – 10k ohm on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF (0) pulls line low to indicate module is plugged in.

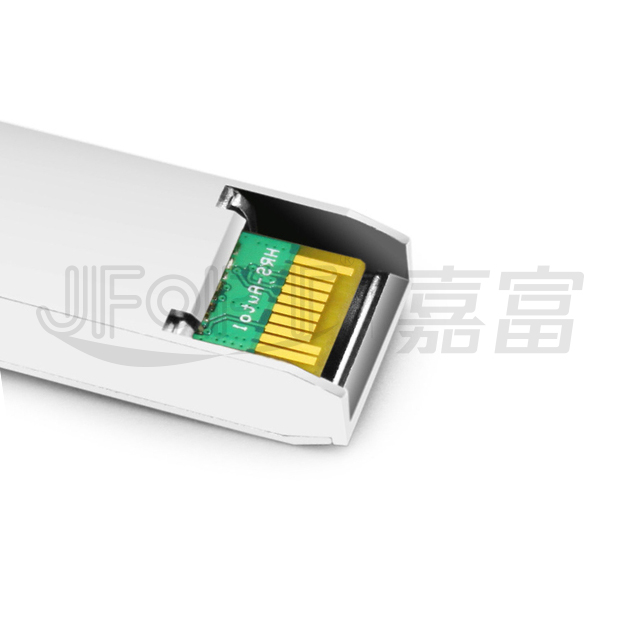

The following is the Diagram of host board connector pin numbers and names







串行通信协议
SERIAL COMMUNICATION PROTOCOL


JFOPT Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA. These SFP use a 128 byte EEPROM with an address of A0H. The 10/100/1000BASE-T physical layer IC can also be accessed via the 2-wire serial bus at address ACH.

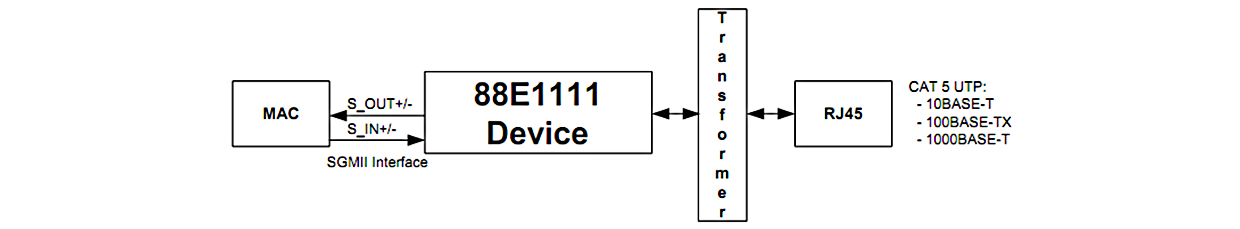

SGMII转铜模式
SGMII TO COPPER MODES






EEPROM串行ID存储器内容
EEPROM SERIAL ID MEMORY CONTENTS


Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.



Table 1 Serial ID Memory Contents

Addr. Size
(Bytes)
Name of Field Hex Description

BASE ID FIELDS

0 1 Identifier 03 SFP
1 1 Ext. Identifier 04 SFP function is defined by serial ID only
2 1 Connector 22 RJ-45
3- 10 8 Transceiver 00 00 00 08 00 00 00 00 Transceiver Code
11 1 Encoding 01 8B10B
12 1 BR, Nominal 0D 1.25G
13 1 Reserved 00 -
14 1 Length (9µm)km 00
Transceiver transmit distance
15 1 Length(9µm)100m 00
16 1 Length (50µm) 10m 00
17 1 Length(62.5µm)10m 00
18 1 Length (Copper) 64 100m
19 1 Reserved 00 -
20-35 16 Vendor name XX XX XX XX XX XX
XX XX 20 20 20 20
20 20 20 20
Vendor name (ASCII)
36 1 Reserved 00 -
37-39 3 Vendor OUI XX XX XX -
40-55 16 Vendor PN XX XX XX XX XX XX
XX XX XX XX XX XX
XX XX XX XX
Transceiver part number
56-59 4 Vendor rev XX XX XX XX -
60-61 2 Wavelength 00 -
62 1 Reserved 00 -
63 1 CC_BASE Check Sum (Variable) Check code for Base ID Fields

EXTENDED ID FIELDS

64-65 2 Options 00 00 TX_DISABLE, TX_FAULT and Loss of Signal implemented.
66 1 BR,max 00 -
67 1 BR,min 00 -
68-83 16 Vendor SN XX XX XX XX XX XX
XX XX 20 20 20 20 20
20 20 20
Serial Number of transceiver(ASCII). For example “B000822” .
84-91 8 Date code XX XX XX XX XX XX
XX XX
Manufacture date code. For example “080405” .
92 1 Diagnostic
Monitoring Type
XX Digital diagnostic monitoring implemented
93 1 Enhanced Options XX Optional flags
94  1 SFF_8472
Compliance
XX 01 for diagnostics (Rev9.3 SFF-8472).
95  1 CC_EXT Check Sum (Variable) Check sum for Extended ID Field.

VENDOR SPECIFIC ID FIELDS

96-127 32 Vendor Specific Read only Depends on customer information
128-255 128 Reserved Read only -




产品包装
PRODUCT PACKAGING






产品认证
PRODUCT CERTIFICATION

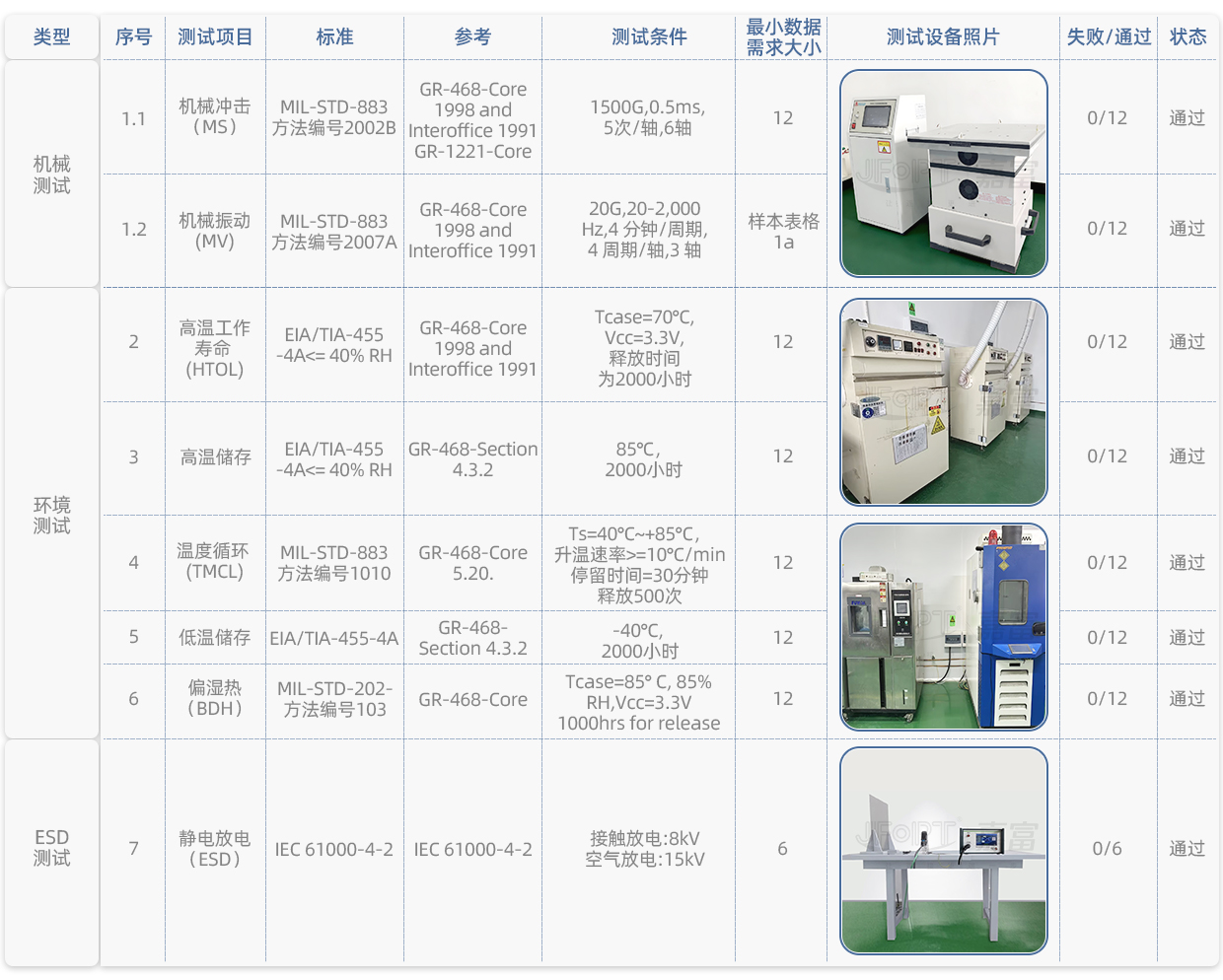

质量优势
QUALITY ADVANTAGE







兼容品牌
COMPATIBLE BRANDS
