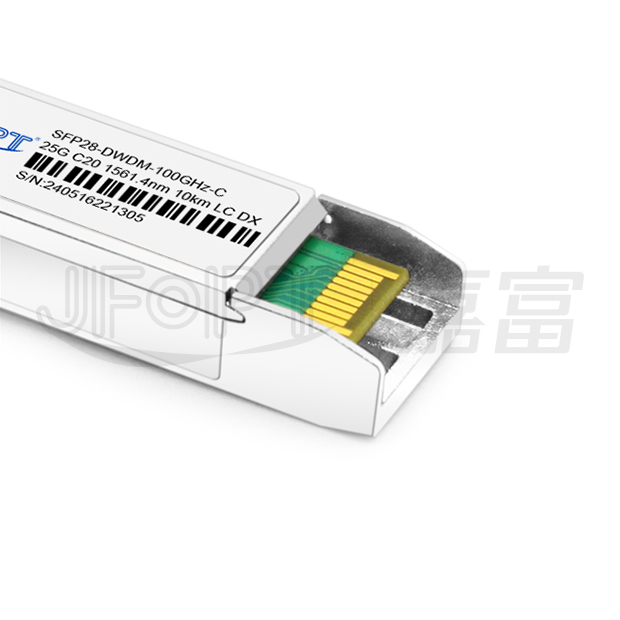

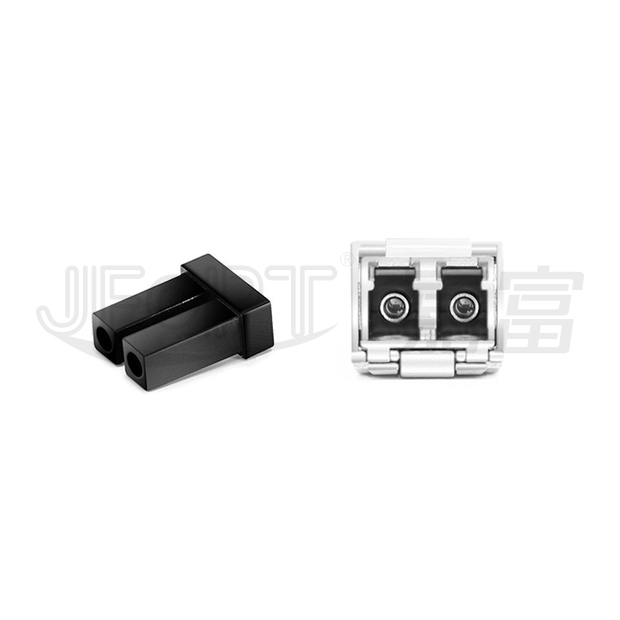

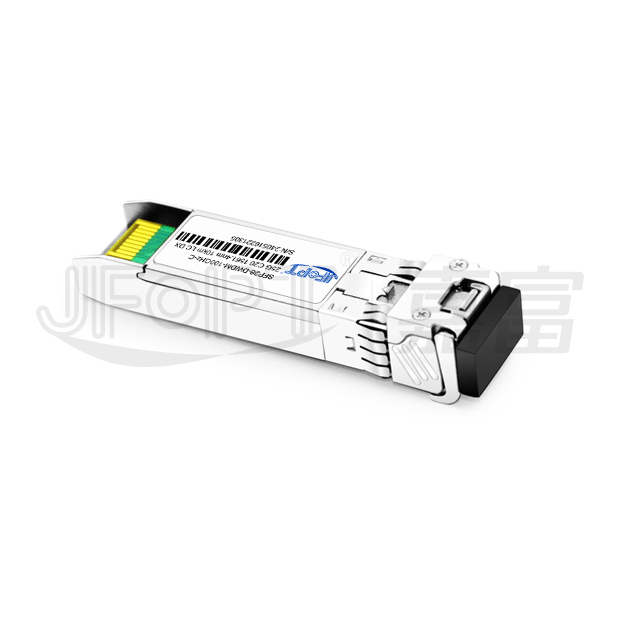

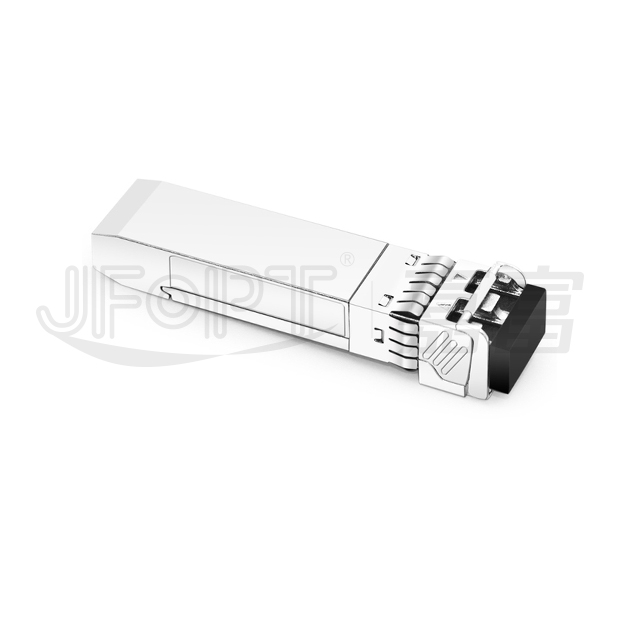

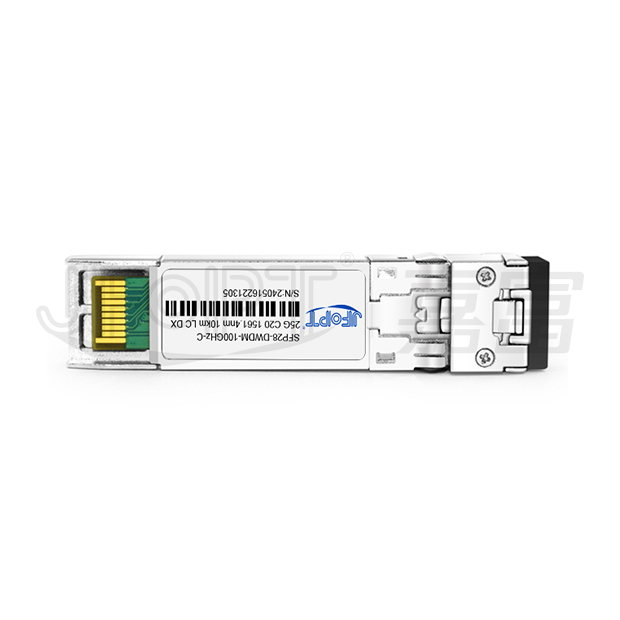

JFOPT SFP28 25G DWDM光模块 - C波段 10公里 LC双工

产品型号	SFP28-25-DWC-10-LCD	工厂品牌	JFOPT嘉富
封装形式	SFP28	光口类型	双联LC
最高总速率	25.78G	每通道速率	-
最大传输距离	10km
工作波长	C17-C61	工作电压	3.3V
光纤型号	SMF	纤芯尺寸	9/125
发射器类型	EML DWDM	接收器类型	PIN
发射功率	-2~6dBm	接收灵敏度	<-12dBm
数字诊断(DOM)	YES	接收过载	-
功耗	2W	支持协议	MSA, CPRI, eCPRI
工作温度(商业级)	0℃~+70℃	储存温度（商业级）	-40℃~+85℃

生产线介绍

PRODUCTION LINE INTRODUCTION

JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

产品介绍

PRODUCT PRESENTATION

JFOPT SFP28 25G DWDM（C波段）10公里 LC DX光模块是一款高性能模块，专为在单模光纤（SMF）上实现25GBase-DWDM连接而设计，传输距离可达10公里。该模块采用LC双工连接器，为25G以太网、电信及数据中心应用提供可靠的25GBASE以太网连接。完全符合SFP28 MSA规范以及CPRI和eCPRI标准，确保在现代网络基础设施中实现兼容性与无缝集成。

光模块系列产品

TRANSCEIVER SERIES PRODUCTS

生产及检测设备

PRODUCTION & TESTING EQUIPMENT

产品特点

FEATURES

Fully RoHS compliant					All metal housing for superior EMI performance
Operating data rate 9.83Gbps to 25.78125Gbps					Digital monitoring SFF-8472 rev 10.2 compliant
Cooled EML DFB laser					APD receiver
LC duplex connector					Hot plug gable 20pin connector
Low power consumption ≤2W					-40C to 85C operating wide temperature range
Single +3.3V ±5% power supply					RealTime monitoring of：transmitted optical power received optical power laser bias current temperature supply voltage

应用范围

APPLICATION

25G ethernet

Data center

符合标准

STANDARD COMPLIANCE

绝对最大额定值

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Storage temperature range	TS	-40	85	°C
Relative humidity	RH	-	95	%

建议的操作条件

RECOMMENDED OPERSTING CONDITIONS

Parameter	Symbol	Min.	Typ.	Max.	Unit
Operating case temperature range	TC	-40	-	85	°C
Power supply voltage	VCC	3.14	3.3	3.46	V
Bit rate	BR	-	25.78125	-	Gb/s
Bit error ratio	BER	-	-	5 E-5	-
Max supported link length	L	-	-	10	km

光学特性

OPTICAL CHARACTERISTICS

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Transmitter
Nominal wavelength	λC	1529.55	-	1561.42	nm	-
Center wavelength spacing	ΔT	-	100	-	GHz	-
Wavelength tolerance	ΔCW	-80	-	80	pm	-
Side mode suppression ratio	SMSR	30	-	-	dB	-
Spectral width(-20dB)	Δλ	-	-	0.5	nm	-
Average optical power	Pavg	0	-	5	dBm	-
Extinction ratio	ER	6	-	-	dB	-
Mask Margin\|5E -5	Margin	10	-	-	%	-
Dispersion Penalty	TDP	-	-	3	dB	-
Average optical power of transmitter off	Poff	-	-	-30	dBm	-
Receiver
Center wavelength	λC	1260	-	1620	nm	-
Transmitting distance	TD		-	10	km	-
Average receiver sensitivity	Sens	-	-	-18	dBm	-
Receiver iverload	Rod	-5	-	-	dBm	-
Optical return loss	ORL	26	-	1561.42	dB	-
LOS assert	LOSA	-35	-	-	dBm	-
LOS de-assert	LOSD	-	-	-19	dBm	-
LOS hysteresis	LOSH	0.5	-	5	dB	-

电气特性

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min.	Typ.	Max.	Unit
Supply voltage	VCC	3.14	3.3	3.46	V
Power consumption	Por	-	-	2	W
Transmitter
Input differential impedance	Rin	90	100	110	Ω
Differential data input	VIN	190	-	700	mVp-p
Transmit disable voltage	VDIS	2	-	VCCHOST	V
Transmit enable voltage	VEN	VEE	-	VEE+0.8	V
Transmit fault assert voltage	VFA	2	-	VCCHOST	V
Transmitfault de-assert voltage	VFDA	VEE	-	VEE+0.4	V
Receiver
Differential data output	VOD	350	-	850	mVp-p
Output rise time@20%~80%	tRISE	25	-	-	PS
Output fall time@20%~80%	tFALL	25	-	-	PS
LOS fault	VLOSFT	2	-	VCCHOST	V
LOS normal	VLOSNR	VEE	-	VEE+0.4	V

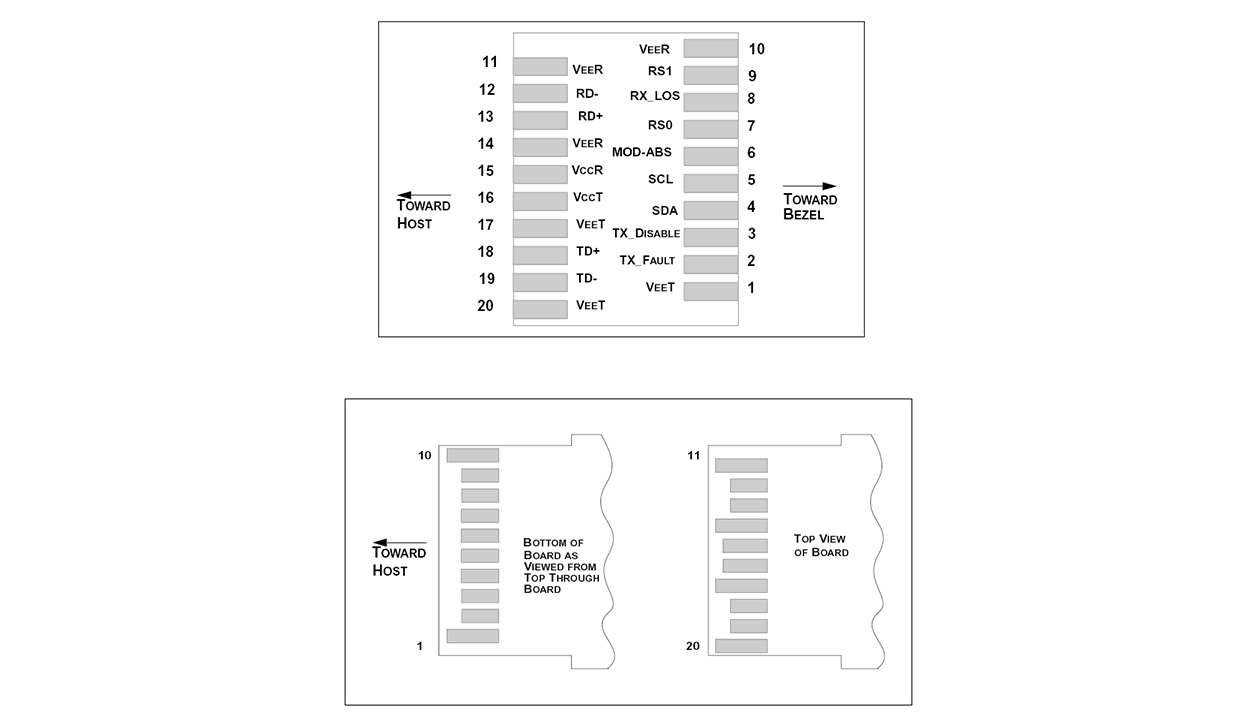

引脚定义

PIN DEFINITIONS

引脚描述

PIN DESCRIPTION

Pin	Symbol	Name	Description
1,17,20	VeeT	Transmitter signal ground	These pins should be connected to signal ground on the host board.
2	TX fault	Transmitter fault out(OC)	Logic“1 ”output = laser fault (laser off before t_fault) Logic“0”output = normal operation This pin is open collector compatible, and should be pulled up to Host Vcc with a 10k Ω resistor.
3	TX disable	Transmitter disable in(LVTTL)	Logic“1 ”input (or no connection) = Laser off Logic“0”input = laser on This pin is internally pulled up to Vc cT with a 10 kΩ resistor.
4	SDA	Module definition identifiers	Serial ID with S FF 8472 diagnostics module Definition pins should be pulled up to Host Vcc with 10kΩ resistors.
5	SCL
6	MOD_ABS
7	RS0	Receiver rate select (LVTTL) Transmitter rate select (LVTTL)	These pins have an internal 30k Ω pull-down to ground. A signal on either of these pins will not affect module performance.
9	RS1
8	LOS	Loss of signal out(OC)	Sufficient optical signal for potential BER < 1 x 1 0- 1 2 = Logic“0” Insufficient optical signal for potential BER < 1 x 1 0- 1 2 = Logic“1 ” This pin is open collector compatible, and should be pulled up to Host Vcc with a 1 0k Ω resistor.
10,11,14	VeeR	Receiver signal ground	These pins should be connected to signal ground on the host board.
12	RD-	Receiver negative DATA out(CML)	Light on = logic“0”output receiver DATA out put is internally AC coupled and series termin ated with a 50Ω resistor.
13	RD+	Receiver positive DATA out (CML)	Light on = Logic“1 ”Output Receiver DATA output is internally AC coupled and series terminated with a 50Ω resistor.
15	VccR	Receiver power supply	This pin should be connected to a filtered +3.3V power supply on the host board.See Figure 3.recommended power supply filter
16	VccT	Transmitter power supply	This pin should be connected to a filtered +3.3V power supply on the host board.See Figure 3.Recommended power supply filter
18	TD+	Transmitter positive DATA in (CML)	Logic“1 ”Input = Light on Transmitter DATA inputs are internally AC coupled and terminated with a differential 100Ω resistor.
19	TD-	Transmitter negative DATA in (CML)	Logic“0”Input = Light on Transmitter DATA inputs are internally AC coupled and terminated with a differential 100Ω resistor.

DDM精度

DDM ACCURACY

Parameter	Symbol	Min .	Max.	Unit
Temperature	TC	-3	3	℃
Voltage	VC	-3	3	%
Ibias	ICC	-10	10	%
Tx power	TXPWR	-3	3	dB
Rx power	RXPWR	-3	3	dB
