产品型号
|
JFTSM-SFPCO-001A-01-RJ45-SGMII
|
工厂品牌
|
JFOPT嘉富
|
|
封装形式
|
SFP
|
接口类型
|
RJ45
|
|
最高总速率
|
125Mbps
|
10G 最大传输距离
|
100m
|
|
支持热插拔
|
YES
|
工作电压
|
3.3V
|
|
功耗
|
-
|
支持协议
|
SFP MSA IEEE Std 802.3
|
|
工作温度(商业级)
|
0℃~+70℃
|
储存温度（商业级）
|
-40℃~+85℃
|
|
工作温度(工业级)
|
-40℃~+85℃
|
储存温度（工业级）
|
-40℃~+85℃
|
生产线介绍
PRODUCTION LINE INTRODUCTION
JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。
产品介绍
PRODUCT PRESENTATION

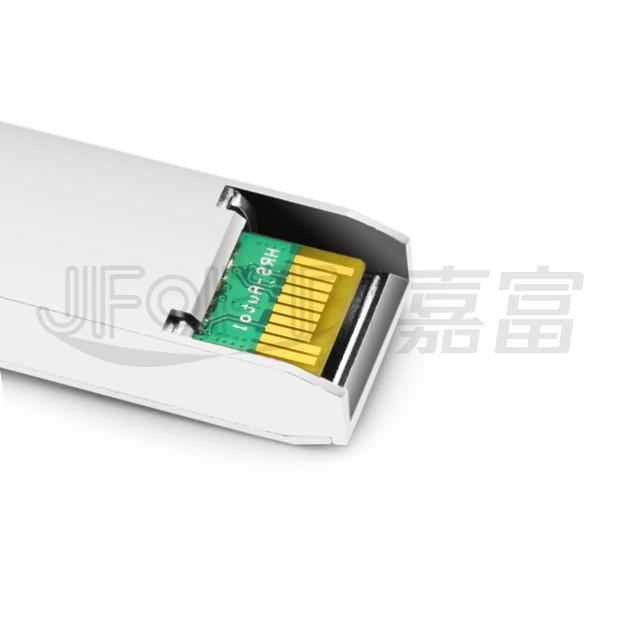

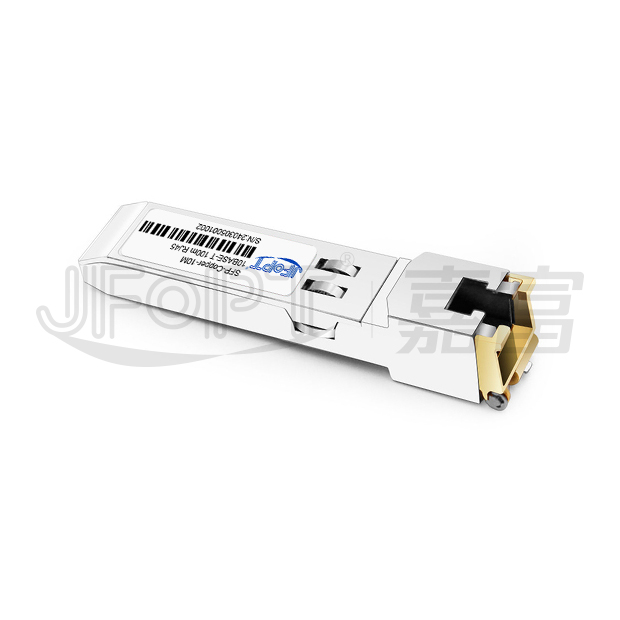

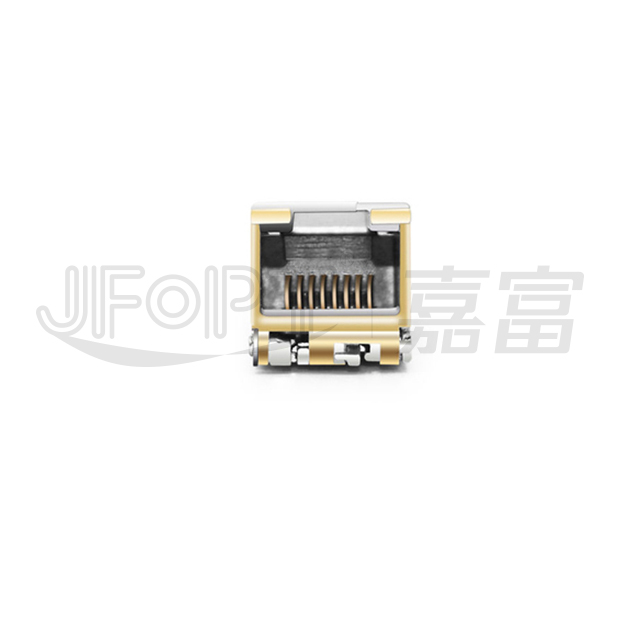

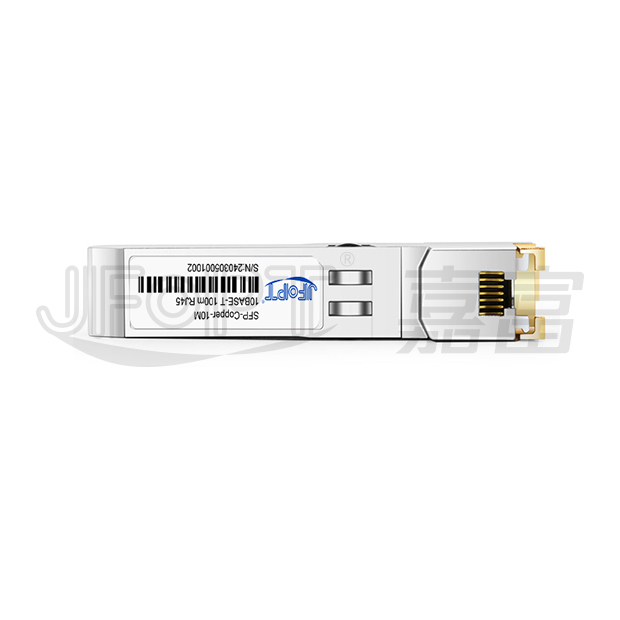

JFOPT SFP Copper 10BASE-T 100m RJ45是一款专为10BASE-T铜缆连接设计的小型可插拔（SFP）光模块。该光模块符合SFP多源协议（MSA）以及IEEE 802.3-2002和IEEE 802.3u中规定的10BASE-T标准，具有高性能和经济实用的特点，可通过非屏蔽双绞线5类线缆实现最远100米距离的10Mbps数据传输。

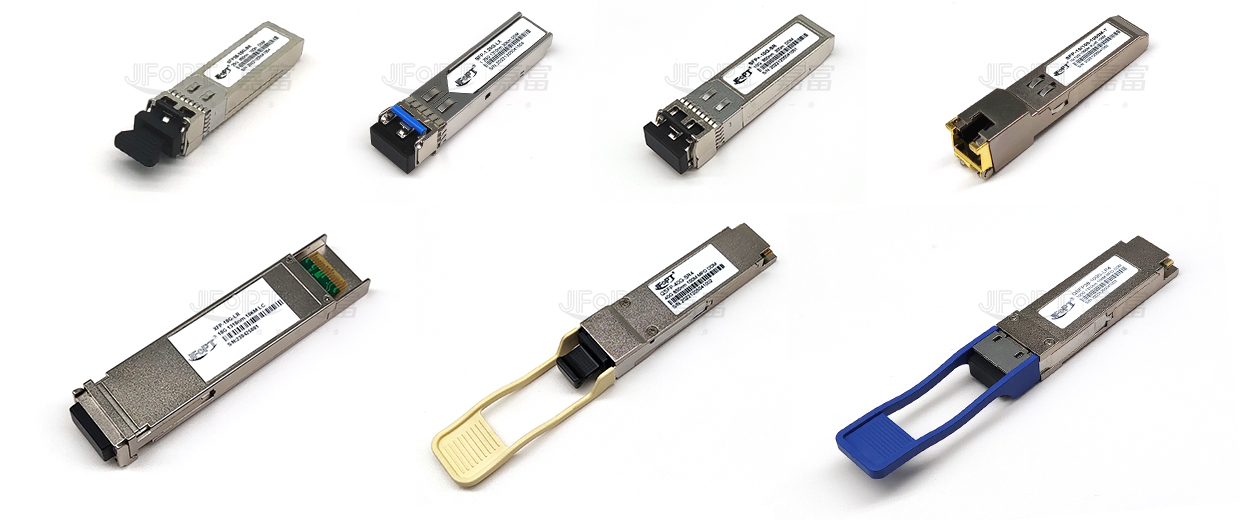

光模块系列产品
TRANSCEIVER SERIES PRODUCTS

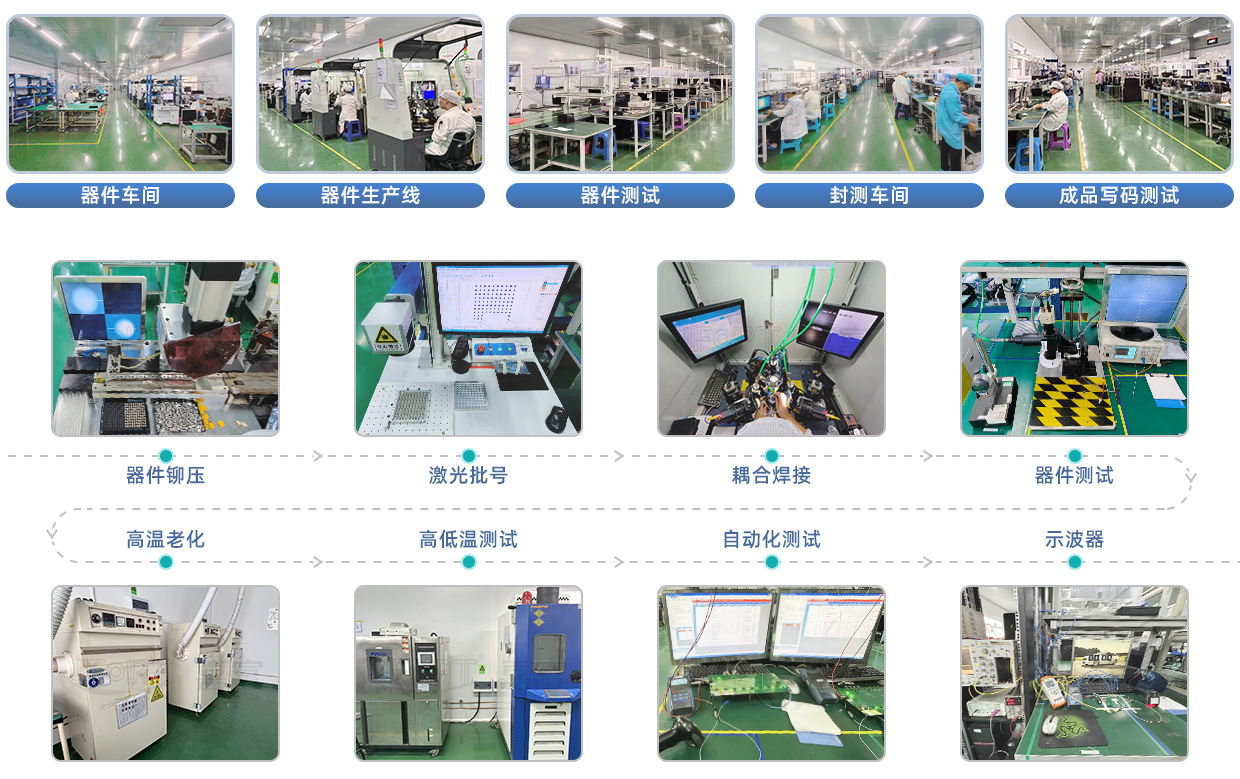

生产及检测设备
PRODUCTION & TESTING EQUIPMENT
产品特点
FEATURES
| Support 10BASE-T operation in host systems | For 100m reach over Cat 5 UTP cable | ||||||||
| Hot-Pluggable SFP Footprint | Fully metallic enclosure for low EMI | ||||||||
| Low power dissipation | Compact RJ-45 connector assembly | ||||||||
| Detailed product information in EEPROM | Operating case temperature Standard ：0C~70C Industrial ：-40C~85C |
||||||||
| Compliant with SFP MSA | Compliant with IEEE Std 802.3 |
应用范围
APPLICATION
符合标准
STANDARD COMPLIANCE
订购信息
ORDER INFORMATION
| Part No. | Data Rate | Link Type | Connector | LOS Function | Distance | Tempe. | ||
| JFTSM-SFPCO-001A-01-RJ45-SGMII | 10M | Cat5 | RJ45 | With | 100m | Standard | ||
绝对最大额定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Typ | Max. | ||||
| Maximum supply voltage | Vcc | -0.5 | - | 4.0 | ||||
| Storage temperature | TS | -40 | - | +85 | ||||
正常工作条件
NORMAL OPERATING CONDITION
| Parameter | Symbol | Min | Typ | Max | Units | Ref. | ||
| Operating case temperature | Tc | 0 | - | 70 | °C | Standard | ||
| -40 | - | 85 | Industrial | |||||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | |||
电气特性
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| +3.3 Volt Electrical Power Interface |
||||||||
| Supply current | Icc | - | 170 | 300 | mA | - | ||
| Input voltage | Vcc | 3.13 | 3.3 | 3.47 | V | - | ||
| Surge vurrent | Isurge | - | - | 30 | mA | - | ||
Low-Speed Signals, Electronic Characteristics |
||||||||
| SFP output low | VOL | 0 | - | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP output high | VOH | host_Vcc-0.5 | - | host_Vcc+0.3 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP input low | VIL | 0 | - | 0.8 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
| SFP input high | VIH | 2 | - | Vcc + 0.3 | V | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
High-Speed Electrical Interface, Transmission Line-SFP |
||||||||
| Line baud rates | fL | - | 125 | - | MHz | MLT-3 encoding per IEEE802.3u | ||
| TX output impedance | Zout, TX |
-
 |
100 | - | Ohm | Differential, AC coupled Internally | ||
| RX input impedance | Zin, RX | - | 100 | - | Ohm | Differential, AC coupled Internally | ||
High-Speed Electrical Interface, Host-SFP |
||||||||
| Single ended data input swing | Vin | 250 | - | 1200 | mV | Single ended | ||
| Single ended data output swing | Vout | 300 | - | 1000 | mV | Single ended | ||
| Rise/Fall time | Tr, Tf | - | 3 | - | nsec | 20%-80% | ||
| TX Iinput impedance | Zin | - | 50 | - | Ohm | Single ended | ||
| RX output impedance | Zout | - | 50 | - | Ohm | Single ended | ||
一般规格
GENERAL SPECIFICATIONS
| Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions | ||
| Data rate | JFTSM-SFPCO-001A-01-RJ45-SGMII | - | 10 | - | Mbps | |||
| Distance | - | - | - | 100 | m | Category 5 UTP. BER <10-12 | ||
引脚说明
PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter ground | 1 | - | ||||
| 2 | TX fault | Transmitter fault indication | 3 | 1 | ||||
| 3 | TX disable | Transmitter disable | 3 | 2 | ||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | 3 | ||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | 3 | ||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | 3 | ||||
| 7 | Rate select | Not connected | 3 | - | ||||
| 8 | LOS | Los of signal | 3 | 4 | ||||
| 9 | VeeR | Receiver ground | 1 | - | ||||
| 10 | VeeR | Receiver ground | 1 | - | ||||
| 11 | VeeR | Receiver ground | 1 | - | ||||
| 12 | RD- | Inv. received data out | 3 | 5 | ||||
| 13 | RD+ | Received data out | 3 | 5 | ||||
| 14 | VeeR | Receiver ground | 1 | - | ||||
| 15 | VccR | Receiver power | 2 | 6 | ||||
| 16 | VccT | Transmitter power | 2 | 6 | ||||
| 17 | VeeT | Transmitter ground | 1 | - | ||||
| 18 | TD+ | Transmit data in | 3 | 7 | ||||
| 19 | TD- | Inv. transmit data in | 3 | 7 | ||||
| 20 | VeeT | Transmitter ground | 1 | - | ||||
1. TX Fault is not used and tied to ground within the module.
2. TX Disable is not used and is not connected within the module.
3. MOD-DEF 0,1,2 are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR.
MOD-DEF 0 is tied to ground within the module.
MOD-DEF 1 is the clock line of two wire serial interface for serial ID
MOD-DEF 2 is the data line of two wire serial interface for serial ID
4. The LOS will be LVTTL low for link ok and will be LVTTL high for link off. Externally pull up to VccR or VccT with 4.7k – 10k ohm on host board.
5. These are the differential receiver output. Internally AC-coupled in the transceiver. 100Ω differential lines and 100 Ω terminate resistor should be used on the host board.
6. VccT and VccR are internally connected together in the transceiver.
7. These are the differential receiver input. Internally AC-coupled in the transceiver. 100Ω differential lines and 100 Ω terminate resistor is used in the transceiver.
The following is the Diagram of host board connector pin numbers and names
串行通信协议
SERIAL COMMUNICATION PROTOCOL
JFOPT Copper SFP support the 2-wire serial communication protocol defined in the SFP MSA. These SFP use a 128 byte EEPROM with an address of A0H.
EEPROM串行ID存储器内容
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
|
Table 1 Serial ID Memory Contents |
||||||||
| Addr. | Size (Bytes) |
Name of Field | Hex | Description | ||||
BASE ID FIELDS |
||||||||
| 0 | 1 | Identifier | 03 | SFP | ||||
| 1 | 1 | Ext. Identifier | 04 | SFP function is defined by serial ID only | ||||
| 2 | 1 | Connector | 22 | RJ-45 | ||||
| 3- 10 | 8 | Transceiver | 00 00 00 20 00 00 00 00 | 100BASE-FX | ||||
| 11 | 1 | Encoding | 02 | 4B5B | ||||
| 12 | 1 | BR, Nominal | 01 | 100M | ||||
| 13 | 1 | Reserved | 00 | - | ||||
| 14 | 1 | Length (9µm)km | 00 | Transceiver transmit distance |
||||
| 15 | 1 | Length(9µm)100m | 00 | |||||
| 16 | 1 | Length (50µm) 10m | 00 | |||||
| 17 | 1 | Length(62.5µm)10m | 00 | |||||
| 18 | 1 | Length (Copper) | 64 | 100m | ||||
| 19 | 1 | Reserved | 00 | - | ||||
| 20-35 | 16 | Vendor name | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Vendor name (ASCII) | ||||
| 36 | 1 | Reserved | 00 | - | ||||
| 37-39 | 3 | Vendor OUI | XX XX XX | - | ||||
| 40-55 | 16 | Vendor PN | - | Transceiver part number | ||||
| 56-59 | 4 | Vendor rev | XX XX XX XX | - | ||||
| 60-61 | 2 | Wavelength | 00 | - | ||||
| 62 | 1 | Reserved | 00 | - | ||||
| 63 | 1 | CC_BASE | Check Sum (Variable) | Check code for Base ID Fields | ||||
EXTENDED ID FIELDS |
||||||||
| 64-65 | 2 | Options | 00 00 | - | ||||
| 66 | 1 | BR,max | 00 | - | ||||
| 67 | 1 | BR,min | 00 | - | ||||
| 68-83 | 16 | Vendor SN | XX XX XX XX XX XX XX XX 20 20 20 20 20 20 20 20 |
Serial Number of transceiver (ASCII). For example“B000822” . | ||||
| 84-91 | 8 | Date code | XX XX XX XX XX XX XX XX |
Manufacture date code. For example “080405” . |
||||
| 92-94 | 3 | Reserved | XX | - | ||||
| 95 | 1 | CC_EXT | Check Sum (Variable) | Check sum for Extended ID Field. | ||||
VENDOR SPECIFIC ID FIELDS |
||||||||
| 96-127 | 32 | Vendor Specific | Read only | Depends on customer information | ||||
| 128-255 | 128 | Reserved | Read only | |||||

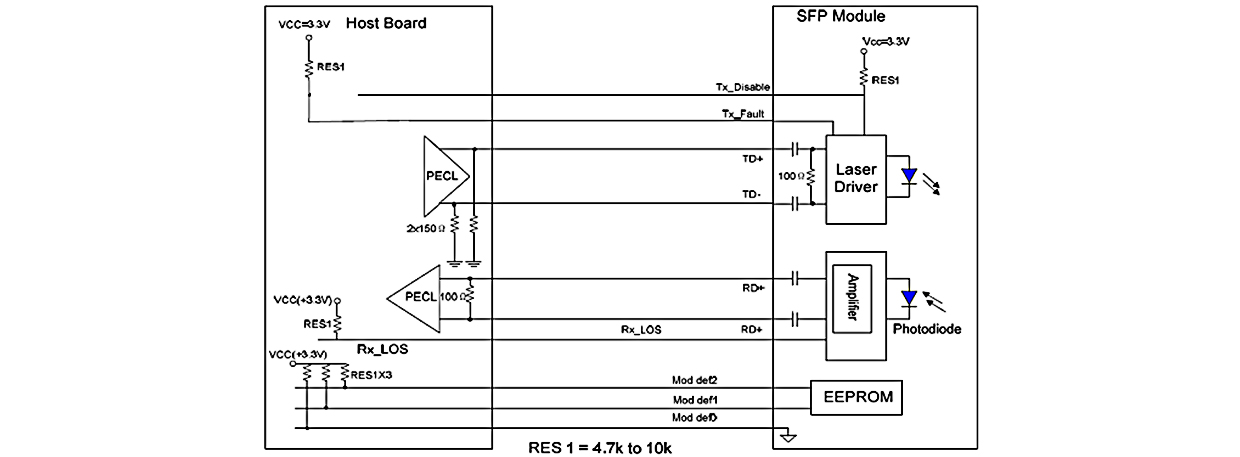

推荐电路示意图
RECOMMENDED CIRCUIT SCHEMATIC
产品包装
PRODUCT PACKAGING
产品认证
PRODUCT CERTIFICATION

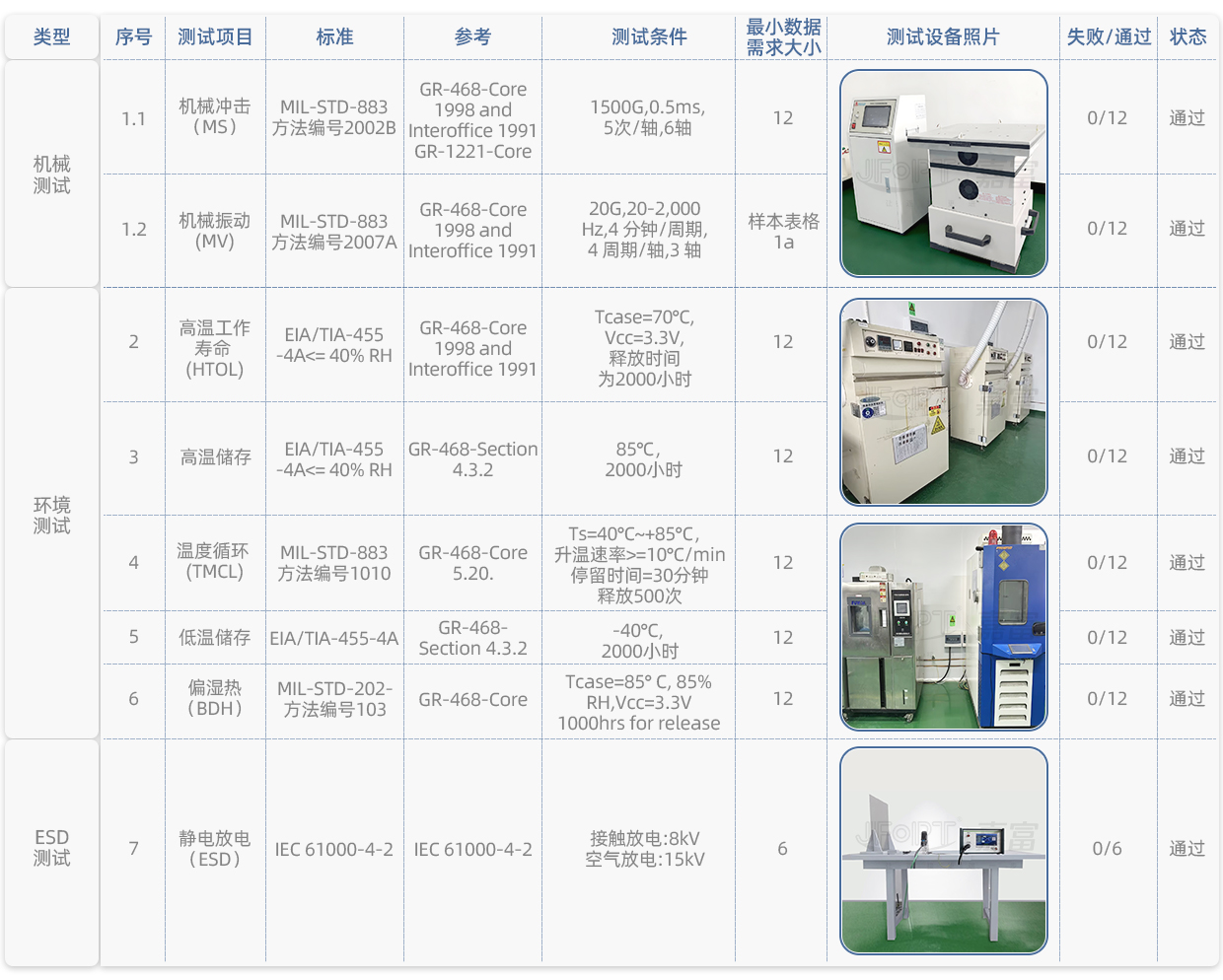

质量优势
