| 产品型号 | JFTSM-SFP28BD-25-1213-10(LR)-LC | 工厂品牌 | JFOPT嘉富 |
| 封装形式 | SFP28 | 光口类型 | 单联 LC |
| 最高总速率 | 25.78Gbps | 每通道速率 | - |
| 最大传输距离 | 10km | ||
| 工作波长 | 1270nm-TX/1330nm-RX | 工作电压 | 3.3V |
| 光纤型号 | SMF | 纤芯尺寸 | 9/125 |
| 发射器类型 | DFB BiDi | 接收器类型 | PIN |
| 发射功率 | -2~4dBm | 接收灵敏度 | <-13dBm |
| 数字诊断(DOM) | YES | 接收过载 | 2dBm |
| 功耗 | <1W | 支持协议 | MSA, CPRI, eCPRI |
| 工作温度(商业级) | 0℃~+70℃ | 储存温度（商业级） | -40℃~+85℃ |
生产线介绍
PRODUCTION LINE INTRODUCTION
JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。
产品介绍
PRODUCT PRESENTATION

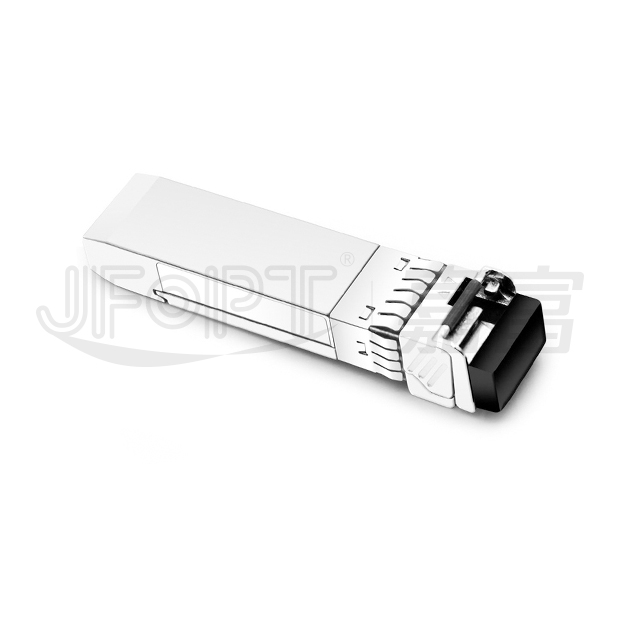

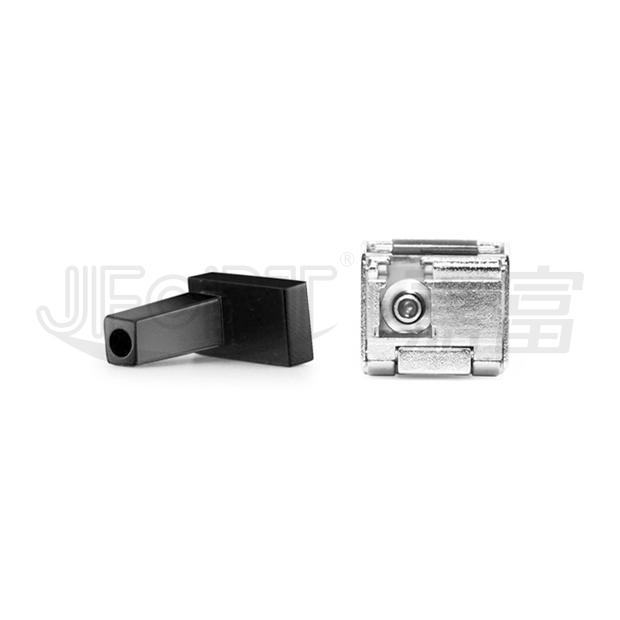

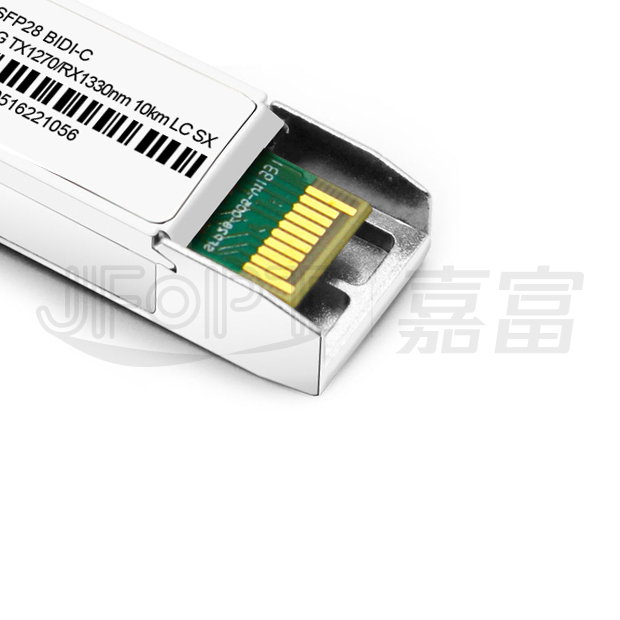

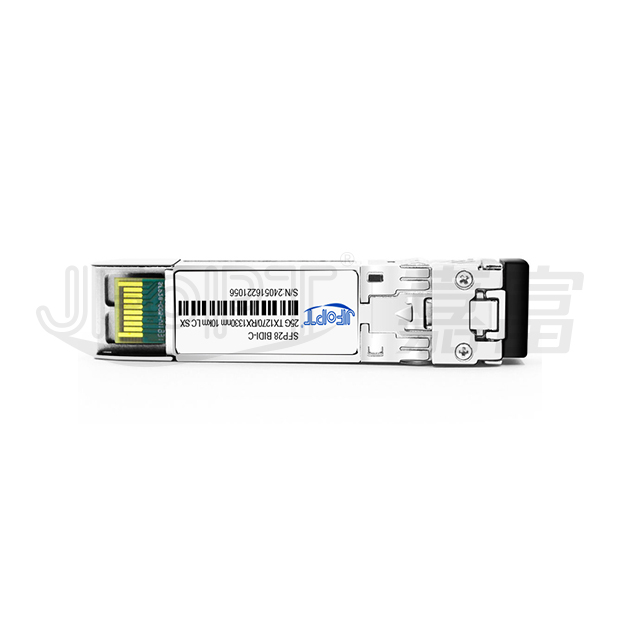

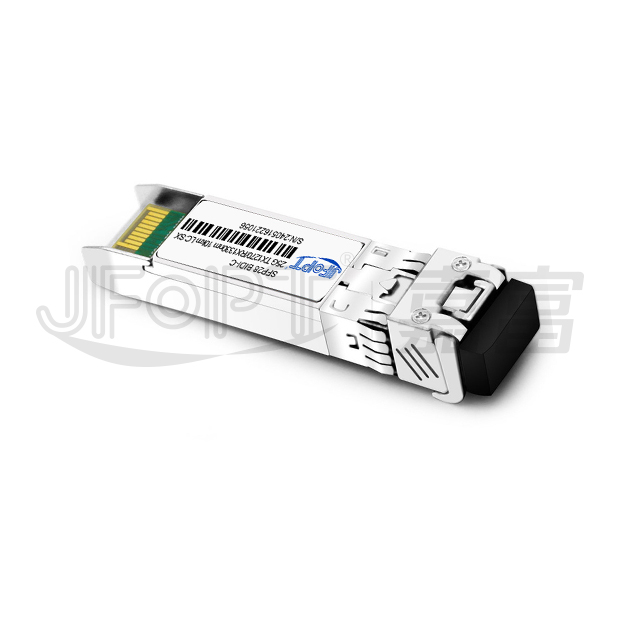

JFOPT SFP28 BIDI 25G 1270/1330nm 10km LR LC SX光模块是专为以太网链路设计的高性能模块，支持高达25.78Gbps的数据传输速率及10公里传输距离。该系列光收发器符合SFF-8472标准，兼容SFF-8432及SFF-8431相关章节规范，同时依据2011/96/EU欧盟指令满足RoHS标准且无铅环保，为高速网络应用提供可靠环保的解决方案。
光模块系列产品
TRANSCEIVER SERIES PRODUCTS
生产及检测设备
PRODUCTION & TESTING EQUIPMENT
产品特点
FEATURES
| Hot-pluggable SFP28 footprint | UP to 25.78Gb/s bi-directional data links | ||||||||
| Simplex LC connector | Up to 10km on 9/125m SMF | ||||||||
| 1271nm DFB laser transmitter for -2733 | 1331nm DFB laser transmitter for -3327 | ||||||||
| Single 3.3V power supply | Operating temperature: commercial: 0~ 70°C | ||||||||
| RoHS compliant | 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers |
应用范围
APPLICATION
| 25GE LR | eCPRI & CPRI |
符合标准
STANDARD COMPLIANCE
一般规范
GENERSL SPECIFICATIONS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note | |||
Transmitter |
|||||||||
| Center Wavelength | λt | 1265 | 1271 | 1277 | nm | - | |||
| 1325 | 1331 | 1337 | nm | - | |||||
| spectral width(-20dB) | △λ | - | - | 1 | nm | - | |||
| Average optical Power | Pavg | -5.0 | - | 2 | dBm | 1 | |||
| Laser off power | Poff | - | - | -30 | dBm | - | |||
| Side mode suppression ratio | - | 30 | - | - | - | - | |||
| Extinction ratio | ER | 3.5 | - | - | dB | - | |||
| Optical return loss tolerance | - | - | - | -12 | dB | - | |||
Receiver |
|||||||||
| Center wavelength | λr | 1325 | 1331 | 1337 | nm | - | |||
| 1265 | 1271 | 1277 | nm | - | |||||
| Receiver sensitivity | Sen | - | - | -9 | dB | 2 | |||
| Los assert | LOSA | -30 | - | - | dBm | - | |||
| Los dessert | LOSD | - | - | -16 | dBm | - | |||
| Los hysteresis | LOSH | 0.5 | - | - | dB | - | |||
| Overload | - | 2 | - | - | dBm | - | |||
Notes: 1. Average power figures are informative only, per IEEE802.3cc. 2. Receiver sensitivity is informative. Shall be measured with conformance test signal for . BER =5x 10-5 . |
|||||||||
绝对最大额定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note | |||
| Maximum supply voltage | Vcc | 0 | - | 3.6 | V | - | |||
| Storage temperature | TS | -40 | - | 85 | °C | - | |||
| Case operating temperature | TA | 0 | - | 70 | °C | Commercial | |||
| Relative humidity | RH | 0 | - | 85 | % | 1 | |||
Notes: Non-condensing. |
|||||||||
电气特性
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note | |||
| Supply voltage | VCC | 3.14 | - | 3.46 | V | - | |||
| Supply current | Icc | - | - | 300 | mA | Commercial | |||
| 360 | mA | Extended | |||||||
| 360 | mA | Industrial | |||||||
| Power consumption | P | - | - | 1 | W | Commercial | |||
| 1.2 | W | Extended | |||||||
| 1.2 | W | Industrial | |||||||
| Data rate | R | 24.3 | - | 26.5 | Gb/s | - | |||
| Fiber Length | L | - | - | 10 | KM | - | |||
Transmitter (Tx) |
|||||||||
| Input differential impedance | Rin | - | 100 | - | Ω | 1 | |||
| Differential data input swing | Vin,pp | 180 | - | 700 | mV | 2 | |||
| Transmit disable voltage | VD | 2 | - | Vcc | V | - | |||
| Transmit enable voltage | VEN | Vee | - | Vee+0.8 | V | - | |||
Receiver (Rx) |
|||||||||
| Single ended output voltage tolerance |
V | -0.3 | - | 4 | V | - | |||
| Rx output diff voltage | Vo | 180 | - | 450 | mV | - | |||
| LOS fault | VLOS fault | 2 | - | VccHOST | V | 4 | |||
| LOS normal | VLOS norm | Vee | - | Vee+0.8 | V | 4 | |||
| Notes: 1.Connected directly to TX data input pins. AC coupling from pins into laser driver IC. 2.Per SFF-8431 Rev 3.0 3.Into 100 ohms differential termination. 4.LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V. |
|||||||||
光学特性
OPTICAL CHARACTERISTICS
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
Transmitter (Tx) |
|||||||||
| Center wavelength | λt | 1295 | 1271 | 1277 | nm | - | |||
| 1325 | 1331 | 1337 | nm | - | |||||
| Average optical power | PAVE | -2 | - | 4 | dBm | 1 | |||
| Spectral width(-20dB) | △λ | - | - | 1 | nm | - | |||
| Laser off power | Poff | - | - | -30 | dBm | - | |||
| Side mode suppression ratio | - | 30 | - | - | - | - | |||
| Extinction ratio | ER | 3.5 | - | - | dB | - | |||
| Optical return loss tolerance | - | - | - | -12 | dB | - | |||
Receiver (Rx) |
|||||||||
| Center wavelength | λr | 1325 | 1331 | 1337 | nm | - | |||
| 1265 | 1271 | 1277 | nm | - | |||||
| Receiver sensitivity | Sen | - | - | -13 | dBm | 2 | |||
| Overload | - | 2 | - |  - |
dBm | 2 | |||
| LOS de-assert | LOSA | - |  - |
-14 | dBm | - | |||
| Los assert | LOSA | -30 | -23 | - | dBm | - | |||
| Los hysteresis | - | 0.5 | - |  - |
dB | - | |||
Notes: 1.Average Power figures are informative only, per IEEE802.3cc. 2.Receiver sensitivity is informative. Shall be measured with conformance test signal for . BER =5x 10-5 . |
|||||||||
数字诊断规格
DIGITAL DIAGNOSTIC SPECIFICATIONS
| Parameter | Symbol | Units | Min. | Max. | Accuracy | Note | |||
| Transceiver temperature | T | - | 0 | +70 | ±5 ºC | Commercial | |||
| Transceiver supply voltage | DDVoltage | V | 3.15 | 3.15 | ±3% | - | |||
| Transmitter bias current | DDBias | mA | 0 | 35 | ±10% | - | |||
| Transmitter output power | DDTx-Power | dBm | -5 | +5 | ±3dB | - | |||
| Receiver average optical input power | DDRx-Power | dBm | -16 | -3 | ±3dB | - | |||
时序特性
TIMING CHARACTERISTICS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| TX_disable assert time | t_off | - | - | 100 | us | ||||
| TX_disable negate time | t_on | - | - | 2 | ms | ||||
| Time to initialize 2-wire interface | t_2w_start_up | - | - | 300 | ms | ||||
| Time to initialize | t_start_up | - | - | 300 | ms | ||||
| Time to initialize cooled module and time to power up a cooled module to power level II | t_start_up_cooled | - | - | 90 | s | ||||
| Time to power up to level II | t_power_level2 | - | - | 300 | ms | ||||
| Time to power down from level II | t_power_down | - | - | 300 | ms | ||||
| Tx_fault assert | Tx_Fault_on | - | - | 1 | ms | ||||
| Tx_fault assert for cooled module | Tx_Fault_on_cooled | - | - | 50 | ms | ||||
| TX_FAULT reset | t_reset | 10 | - | - | us | ||||
| Rx_LOS assert delay | t_los_on | - | - | 100 | us | ||||
| Rx_LOS negate delay | t_los_off | - | - | 100 | us | ||||

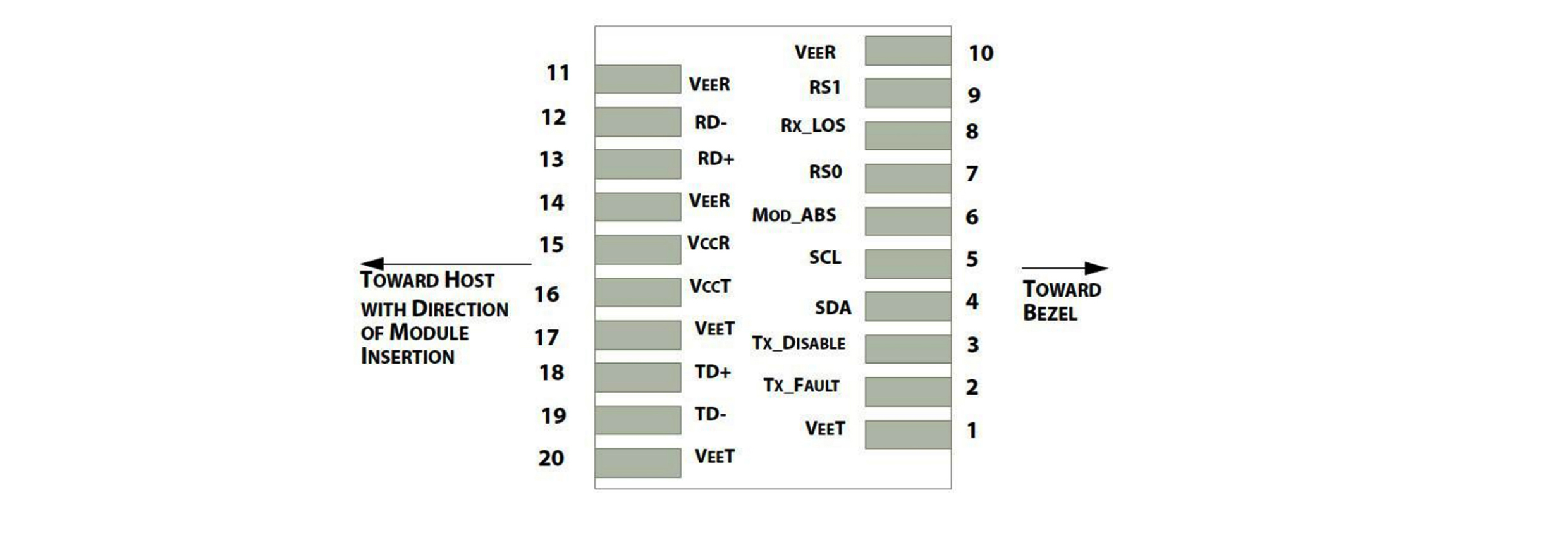

引脚描述
PIN ASSIGNMENT
| Pin | Symbol | Name/Description | Plug Seq. | ||||||
| 1 | VeeT | Module transmitter ground | 1 | ||||||
| 2 | TX fault | Module transmitter fault | 2 | ||||||
| 3 | TX disable | Transmitter disable; turns off transmitter laser output | 3 | ||||||
| 4 | SDL | 2 wire serial interface data input/output (SDA) | 4 | ||||||
| 5 | SCL | 2 wire serial interface clock input (SCL) | 4 | ||||||
| 6 | MOD_ABS | Module absent, connect to VeeR or VeeT in the module | 2 | ||||||
| 7 | RS0 | Rate select0: module inputs and are pulled low to VeeT with > 30kΩ resistorsin the module. | - | ||||||
| 8 | LOS | Receiver Loss of signal indication | - | ||||||
| 9 | RS1 | Rate select1: module inputs and are pulled low to VeeT with > 30kΩ resistorsin the module. | - | ||||||
| 10 | VeeR | Module receiver ground | 1 | ||||||
| 11 | VeeR | Module receiver ground | 1 | ||||||
| 12 | RD- | Receiver inverted data out put | - | ||||||
| 13 | RD+ | Receiver non-inverted data out put | - | ||||||
| 14 | VeeR | Module receiver ground | 1 | ||||||
| 15 | VccR | Module receiver 3.3V supply | - | ||||||
| 16 | VccT | Module transmitter 3.3V supply | - | ||||||
| 17 | VeeT | Module transmitter ground | 1 | ||||||
| 18 | TD+ | Transmitter non-inverted data out put | - | ||||||
| 19 | TD- | Transmitter inverted data out put | - | ||||||
| 20 | VeeT | Module transmitter ground | 1 | ||||||
| Notes: 1.The module ground pins shall be isolated from the module case. 2.This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board. 3.This pin shall be pulled up with 4.7K-10Kohms to VccT in the module. 4.This pin is an open collector/drain output pin and shall be pulled up with 4.7K-10Kohms to Host_Vcc on the host board. |
|||||||||
