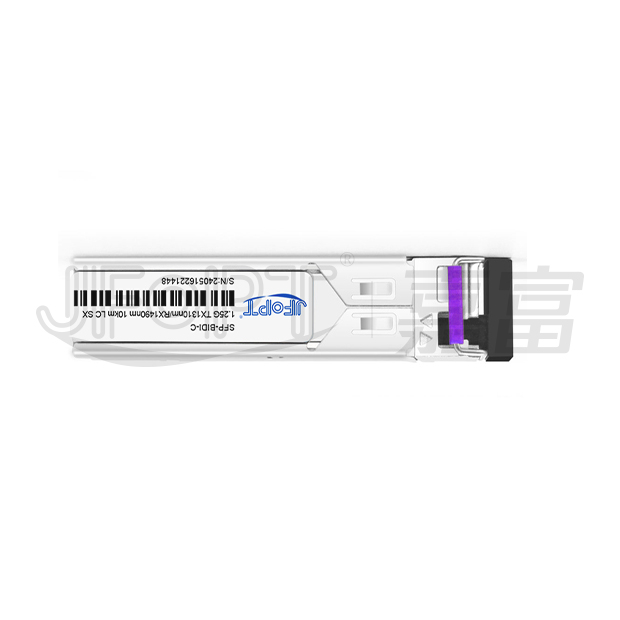

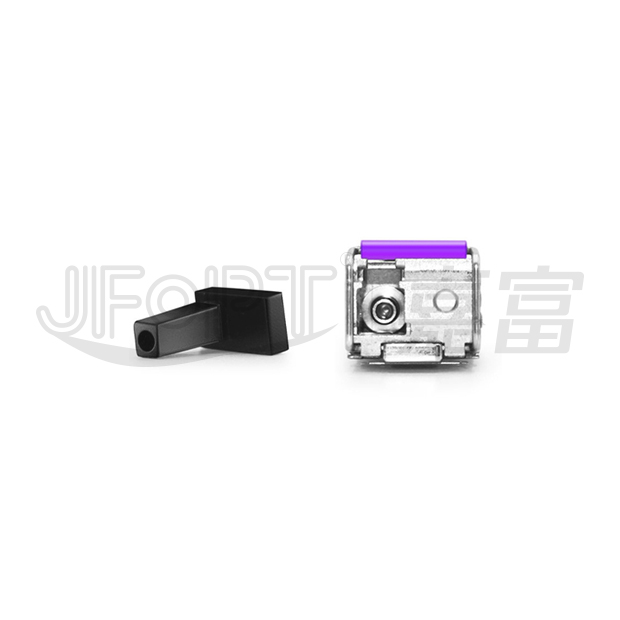

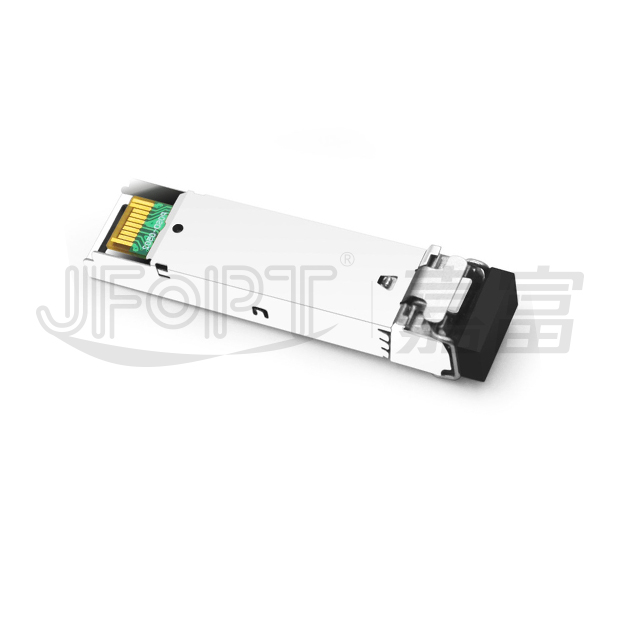

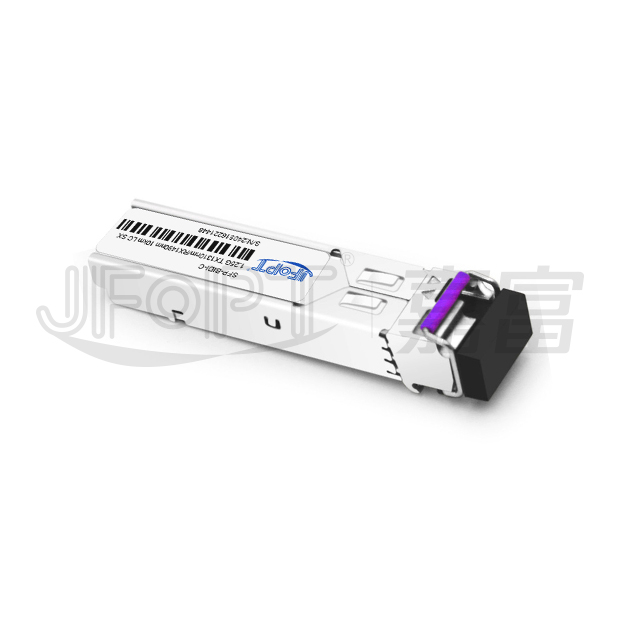

JFOPT SFP BIDI 1.25G 1310/1490nm 550m-60km LC/SC光模块

产品型号	JFTSM-SFPBD-1.25-1314-055/3/10/20/40/60-LC/SC	工厂品牌	JFOPT
封装形式	SFP	光口类型	Simplex SC/LC
最高总速率	up to 1.25G	每通道速率	-
最大传输距离	550M 3/10/20/40/60KM
工作波长	1310nm/1490nm 1490nm/1310nm	工作电压	3.3V
光纤型号	550M MMF 3/10/20/40/60KM SMF	纤芯尺寸	550M 50/125µm 3/10/20/40/60KM 9/125µm
发射器类型	FP/DFB	接收器类型	IDP
发射功率	550M -9.5~-3dbm 3KM -14~-8dbm 10KM -9~-3dbm 20KM -8~-3dbm 40KM -5~0dbm 60KM 0~5dbm	接收灵敏度	550M -21dbm 3/10/20KM -22dbm 40KM -24dbm 60KM -27dbm
数字诊断	YES	接收过载	-3dbm
功耗	<1W	支持协议	SFP MSA SFF-8472
工作温度(商业级)	0℃~+70℃	储存温度（商业级）	-40℃~+85℃
工作温度(工业级)	-40℃~+85℃	储存温度（工业级）	-40℃~+85℃

生产线介绍

PRODUCTION LINE INTRODUCTION

JFOPT嘉富持续投入光模块生产领域，产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外，JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性，广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

产品介绍

PRODUCT PRESENTATION

JFOPT SFPBD-1.25-1314-055/3/10/20/40/60-LC/SC系列（SFP BIDI 1.25G 1310/1490nm LC/SC SX光模块）是一款专为千兆以太网光纤通信设计的高性能多速率收发器。该紧凑型可插拔小尺寸模块通过单纤实现双向通信，采用1310nm/1490nm发射器与1490nm/1310nm接收器配对工作，支持550米、3公里、10公里、20公里、40公里及60公里传输距离，配备20-pin SFP连接器并支持热插拔功能以简化安装维护；其发射端集成符合IEC 60825 1类激光安全标准的高品质多量子阱A/B型激光器，接收端采用先进光检测系统——包含光学头部集成的B/A型探测器前置放大器(IDP)及精密限幅后置放大器IC，确保可靠的信号接收与处理性能；全系列严格遵循SFF-8472 SFP多源协议(MSA)标准，保障行业通用兼容性与互操作性，实现网络系统的无缝集成。

光模块系列产品

TRANSCEIVER SERIES PRODUCTS

生产及检测设备

PRODUCTION & TESTING EQUIPMENT

产品特点

FEATURES

Support 1.25Gbps data links					550m with 50/125µm MMF
Up to 3km with 9/125 µm SMF					Up to 10km with 9/125 µm SMF
Up to 20km with 9/125 µm SMF					Up to 40km with 9/125 µm SMF
Up to 60km with 9/125 µm SMF					A type: 1310nm FP TX/1490nm RX B type: 1490nm FP TX/1310nm RX
A type: 1310nm FP TX /1490nm RX B type: 1490nm DFB TX /1310nm RX					A type: 1310nm DFB TX /1490nm RX B type: 1490nm DFB TX /1310nm RX
Single 3.3V power supply and TTL logic interface					Hot-pluggable SFP footprint simplex SC/LC connector interface

应用环境

APPLICATION

Gigabit ethernet switches and routers				Fiber channel switch infrastructure
Fiber channel links				WDM gigabit ethernet links
Other optical links

符合标准

STANDARD COMPLIANCE

订购信息

ORDERING INFORMATION

Part No.	Data Rate	Wavelength	Interface	Temp.	DDMI
JFTSM-SFPBD-1.25-1314-055-LC/SC	1.25Gbps	1310nm/1490nm	SC	Standard	YES
		1310nm/1490nm		Industrial
		1310nm/1490nm	LC	Standard	YES
		1310nm/1490nm		Industrial	YES
JFTSM-SFPBD-1.25-1314-3/10/20/40/ 60-LC/SC	0.1~1.25Gbps	1310nm/1490nm	SC	Standard	YES
		1310nm/1490nm		Industrial
		1310nm/1490nm	LC	Standard	YES
		1310nm/1490nm		Industrial	YES

绝对最大额定值

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Storage temperature	TS	-4.0	+85	℃
Supply voltage	VCC	-0.5	3.6	V
Operating relative humidity	-	-	95	%
Exceeding any one of these values may destroy the device immediately.

推荐的操作环境

RECOMMENDED OPERATING ENVIRONMENT

Parameter	Symbol		Min	Typical	Max	Unit
Operating case temperature	Tc	JFTSM-SFPBD-1.25-1314-055/3/10/20/ 40/60/80-LC/SC	0	-	+70	°C
			-40	-	+85
Power supply voltage	Vcc		3.15	3.3	3.45	V
Power supply current	Icc		-	-	300	mA
Date rate	-		-	1.25	-	Gbps

性能规格–电气

PERFORMANCE SPECIFICATIONS–ELECTRICAL

Parameter		Symbol	Min.	Typ.	Max.	Unit	Notes
Transmitter
LVPECL inputs(Differential)		Vin	400	-	2000	mVpp	AC coupled inputs
Input impedance (Differential)		Zin	85	100	115	ohm	Rin > 100 kohm @ DC
TX_dis	Disable	-	2	-	Vcc+0.3	V	-
TX_dis	Enable	-	0	-	0.8	V	-
TX_FAULT	Fault	-	2	-	Vcc+0.3	V	-
TX_FAULT	Normal	-	0	-	0.5	V	-
Receiver
LVPECL outputs (Differential)		Vout	370	-	2000	mVpp	AC coupled output
Output impedance(Differential)		Zout	85	100	115	ohms	-
RX_LOS	LOS	-	2	-	Vcc+0.3	V	-
RX_LOS	Normal	-	0	-	0.8	V	-
MOD_DEF ( 0:2 )		VoH	2.5	-	-	V	With serial ID
MOD_DEF ( 0:2 )		VoL	0	-	0.5	V	With serial ID

光学和电学特性

OPTICAL AND ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Unit	1310nm FP and PIN, 550m			1310nm FP and PIN, 3km			1310nm FP and PIN, 10km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
50µm Core Diameter MMF	L	km	-	0.55	-	-	-	-	-	-	-
9µm Core Diameter SMF	L	km	-	-	-	-	3	-	-	10	-
Data rate	-	Gbps	100	1.063/1.25	-	-	1.25	-	-	-	1.25
Transmitter
Center wavelength	λC	nm	1260	1310	1360	1270	1310	1350	1270	1310	1350
Spectral width(RMS)	Δλ	nm	-	-	4	-	-	4	-	-	3.5
Average output power	Pout	dBm	-9.5	-	-3	-14	-	-8	-9	-	-3
Extinction ratio	ER	dB	6	-	-	6	-	-	9	-	-
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	0.26	-	-	0.26	-	-	0.26
Total jitter	TJ	ps	-	-	56.5	-	-	260	-	-	260
Output optical eye	-	-	Compatible with IEEE 802.3ah-2004			Compliant with IEEE 802.3z			Compliant with IEEE 802.3-2005/IEEE 802.3.ah
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10
Pout@TX disable asserted	Pout	dBm	-	-	-45	-	-	-45	-	-	-45
Receiver
Center wavelength	λC	nm	1450	1490	1530	1450	1490	1530	1450	1490	1530
Receiver sensitivity	Pmin	dBm	-	-	-22	-	-	-22	-	-	-22
Receiver overload	Pmax	dBm	-3	-	-	-3	-	-	-3	-	-
LOS de-assert	LOSD	dBm	-	-	-24	-	-	-23	-	-	-23
LOS assert	LOSA	dBm	-36	-	-	-45	-	-	-35	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-

Parameter	Symbol	Unit	1310nm FP and PIN, 20km			1310nm DFB and PIN, 40km			1310nm DFB and PIN, 60km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
9µm Core Diameter SMF	L	km	-	20	-	-	40	-	-	60	-
Data rate	-	Gbps	-	1.063/1.25	-	-	1.063/1.25	-	-	1.063/1.25	-
Transmitter
Center wavelength	λC	nm	1270	1310	1350	1270	1310	1350	1270	1310	1350
Spectral width(-20dB)	Δλ	nm	-	-	3.5	-	-	1	-	-	1
Side mode suppression ratio	SMSR	dB	-	-	-	30	-	-	30	-	-
Average output power	Pout	dBm	-8	-	-3	-5	-	0	0	-	5
Extinction ratio	ER	dB	6	9	-	9	-	-	9	-	-
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	0.26	-	-	0.26	-	-	0.26
Total jitter	TJ	ps	-	-	56.5	-	-	-	-	-	-
Output optical eye	-	-	Compliant with IEEE 802.3z			Compliant with IEEE 802.3z			Compliant with IEEE 802.3z
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10
Pout@TX disable asserted	Pout	dBm	-	-	-45	-	-	-45	-	-	-45
Receiver
Center wavelength	λC	nm	1450	1490	1530	1480	1490	1500	1450	1490	1530
Receiver sensitivity	Pmin	dBm	-	-	-22	-	-	-24	-	-	-27
Receiver overload	Pmax	dBm	-3	-	-	-3	-	-	-3	-	-
LOS de-assert	LOSD	dBm	-	-	-23	-	-	-25	-	-	-28
LOS assert	LOSA	dBm	-35	-	-	-35	-	-	-42	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-

Parameter	Symbol	Unit	1490nm FP and PIN, 550m			1490nm FP and PIN, 3km			1490nm FP and PIN, 10km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
50µm Core Diameter MMF	L	km	-	0.55	-	-	-	-	-	-	-
9µm Core Diameter SMF	L	km	-	-	-	-	3	-	-	10	-
Data rate	-	Gbps	-	1.25	-	-	-	1.25	-	-	1.25
Transmitter
Center wavelength	λC	nm	1460	1490	1520	1450	1490	1530	1270	1310	1350
Spectral width(RMS)	Δλ	nm	-	-	4	-	-	4	-	-	3.5
Average output power	Pout	dBm	-9.5	-	-3	-14	-	-8	-9	-	-3
Extinction ratio	ER	dB	6	-	-	6	-	-	9	-	-
Side mode suppression ratio	SMSR	dB	-	-	-	30
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	0.26	-	-	0.26	-	-	0.26
Total jitter	TJ	ps	-	-	56.5	-	-	-	-	-	260
Output optical eye	-	-	Compatible with IEEE 802.3ah-2004			Compliant with IEEE 802.3ah-2004			Compliant with IEEE 802.3-2005/IEEE 802.3.ah
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10
Pout@TX disable asserted	Pout	dBm	-	-	-45	-	-	-45	-	-	-45
Receiver
Center wavelength	λC	nm	1450	1490	1530	1260	-	1360	1260	-	1360
Receiver sensitivity	Pmin	dBm	-	-	-22	-	-	-22	-	-	-22
Receiver overload	Pmax	dBm	-3	-	-	-3	-	-	-3	-	-
LOS de-assert	LOSD	dBm	-	-	-24	-	-	-23	-	-	-23
LOS assert	LOSA	dBm	-36	-	-	-45	-	-	-35	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-

Parameter	Symbol	Unit	1490nm DFB and PIN, 20km			1490nm DFB and PIN, 40km			1490nm DFB and PIN, 60km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
9µm Core Diameter SMF	L	km	-	20	-	-	40	-	-	60	-
Data rate	-	Gbps	-	1.063/1.25	-	-	1.063/1.25	-	-	1.063/1.25	-
Transmitter
Center wavelength	λC	nm	1460	1490	1520	1460	1490	1520	1450	1490	1530
Spectral width(-20dB)	Δλ	nm	-	-	1	-	-	1	-	-	1
Side mode suppression ratio	SMSR	dB	30	-	-	30	-	-	30	-	-
Average output power	Pout	dBm	-8	-	-3	-5	-	0	0	-	+5
Extinction ratio	ER	dB	6	9	-	9	-	-	9	-	-
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	0.26	-	-	0.26	-	-	0.26
Output optical eye	-	-	Compliant with IEEE 802.3ah-2004			Compliant with IEEE 802.3z			Compliant with IEEE 802.3z
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10
Pout@TX disable asserted	Pout	dBm	-	-	-45	-	-	-45	-	-	-45
Receiver
Center wavelength	λC	nm	1260	-	1360	1260	-	1360	1260	-	1360
Receiver sensitivity	Pmin	dBm	-	-	-22	-	-	-24	-	-	-27
Receiver overload	Pmax	dBm	-3	-	-	-3	-	-	-3	-	-
LOS de-assert	LOSD	dBm	-	-	-23	-	-	-25	-	-	-28
LOS assert	LOSA	dBm	-35	-	-	-35	-	-	-42	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-

收发器功能描述

FUNCTIONAL DESCRIPTION OF TRANSCEIVER

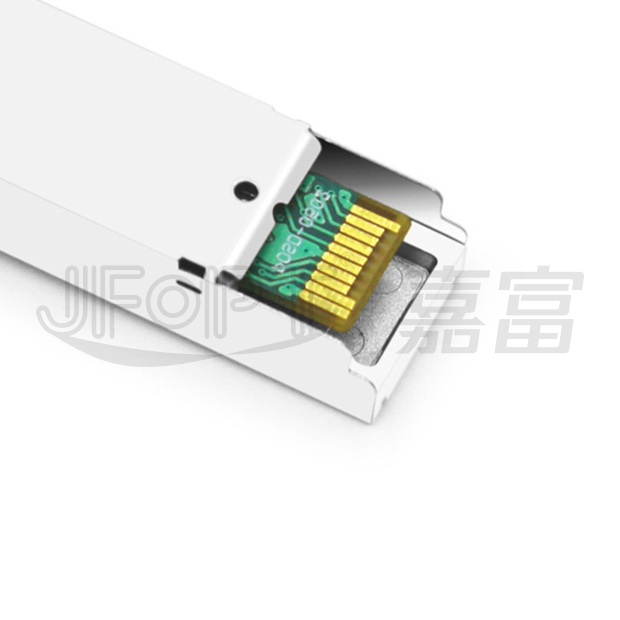

SFP 收发器电气焊盘布局

SFP TRANSCEIVER ELECTRICAL PAD LAYOUT

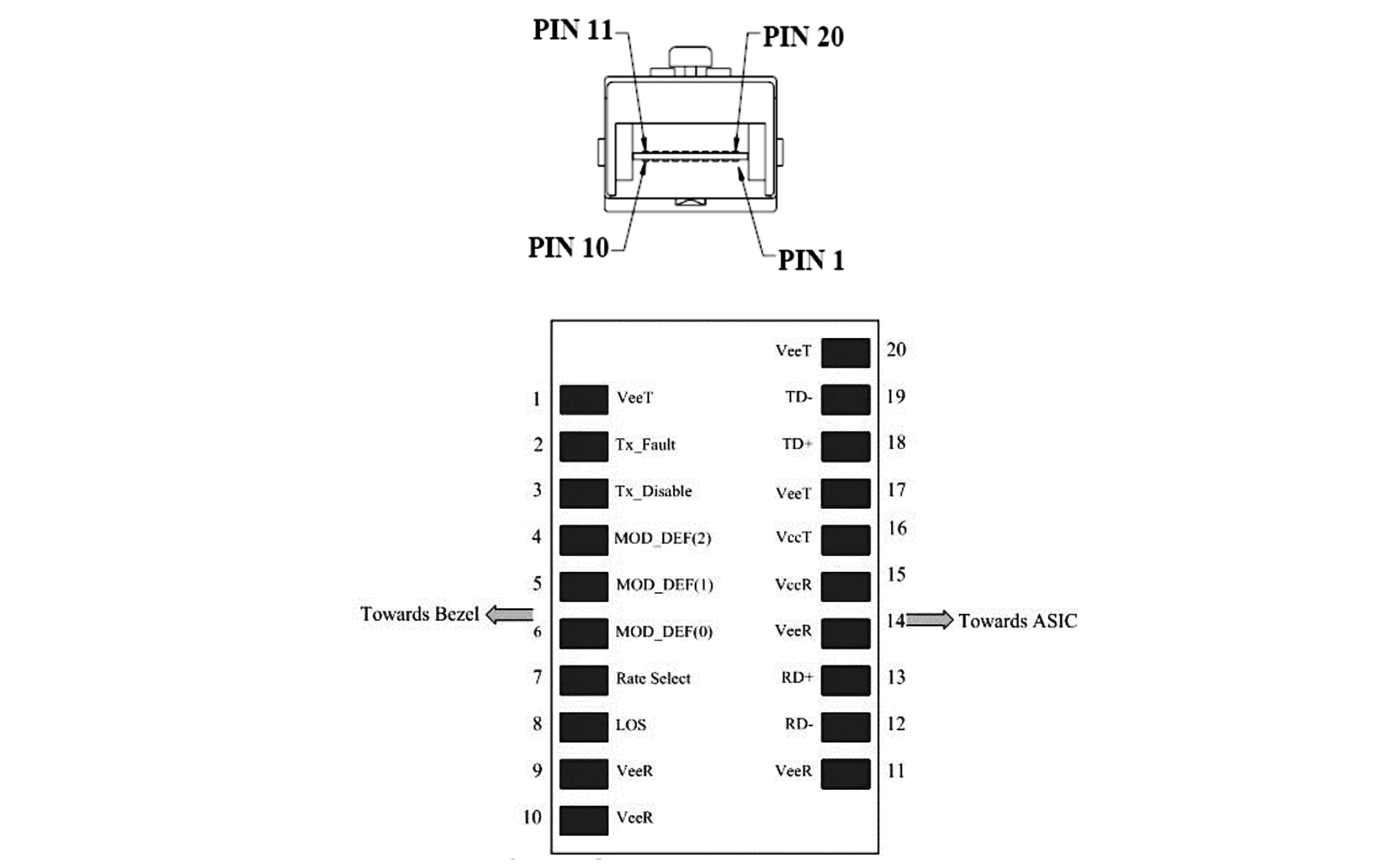

引脚功能定义

PIN FUNCTION DEFINITIONS

Pin	Name	Function	Plug Seq.	Notes
1	VeeT	Transmitter ground	1	5)
2	TX Fault	Transmitter fault indication	3	1)
3	TX Disable	Transmitter disable	3	2) Module disables on high or open
4	MOD-DEF2	Module definition 2	3	3) Data line for serial ID.
5	MOD-DEF1	Module definition 1	3	3) Clock line for serial ID.
6	MOD-DEF0	Module definition 0	3	3) Grounded within the module.
7	Rate Select	Not connect	3	Function not available
8	LOS	Loss of signal	3	4)
9	VeeR	Receiver ground	1	5)
10	VeeR	Receiver ground	1	5)
11	VeeR	Receiver ground	1	5)
12	RD-	Inv. received data out	3	6)
13	RD+	Received data out	3	7)
14	VeeR	Receiver ground	1	5)
15	VccR	Receiver power	2	7) 3.3V ± 5%
16	VccT	Transmitter power	2	7) 3.3V ± 5%
17	VeeT	Transmitter ground	1	5)
18	TD+	Transmit data In	3	8)
19	TD-	Inv. transmit data In	3	8)
20	VeeT	Transmitter ground	1	5)

Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10K resistor on the host board. The pull-up voltageshall be VccT or VccR .Mod-Def 0 is grounded by the module to indicate that the module is present.Mod-Def 1 is the clock line of two wire serial interface for serial ID.Mod-Def 2 is the data line of two wire serial interface for serial ID.

4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 2000 mV differential (185 –1000 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module.The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 500 – 2400 mV (250 – 1200mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600mV single-ended) be used for best EMI performance.

产品包装

PRODUCT PACKAGING

产品认证

PRODUCT CERTIFICATION

质量优势

QUALITY ADVANTAGE

兼容品牌

COMPATIBLE BRANDS
