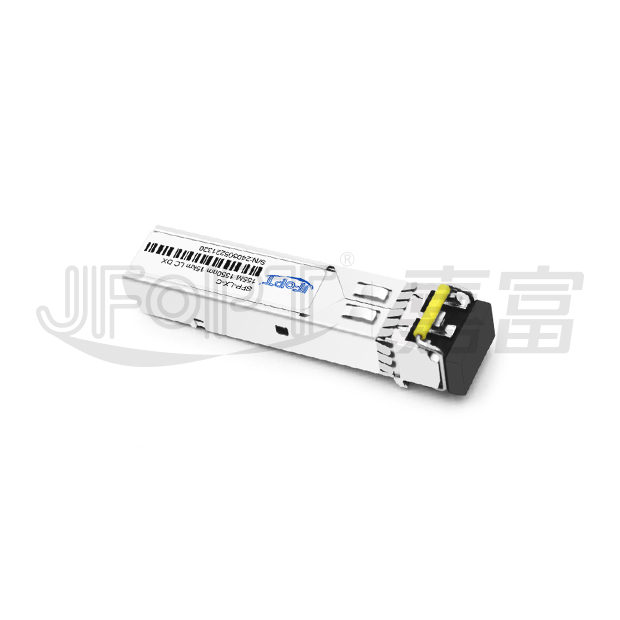

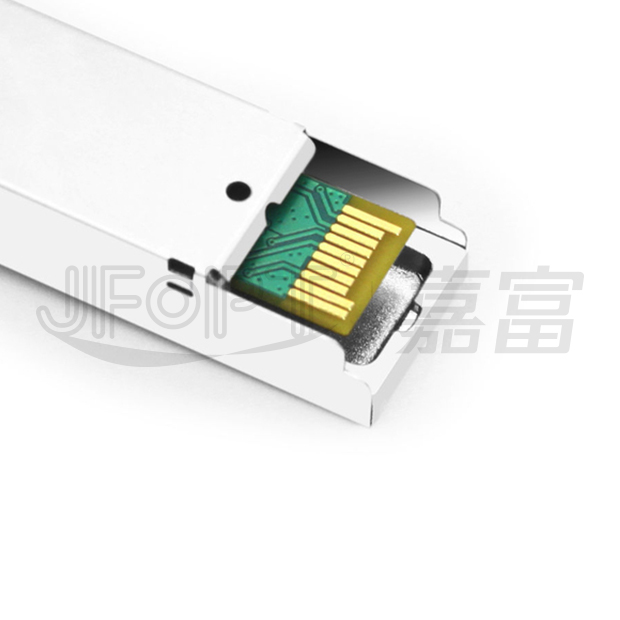

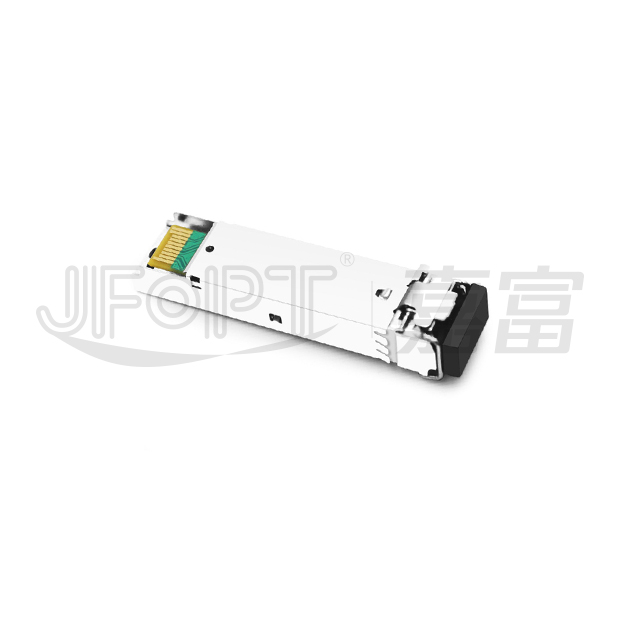

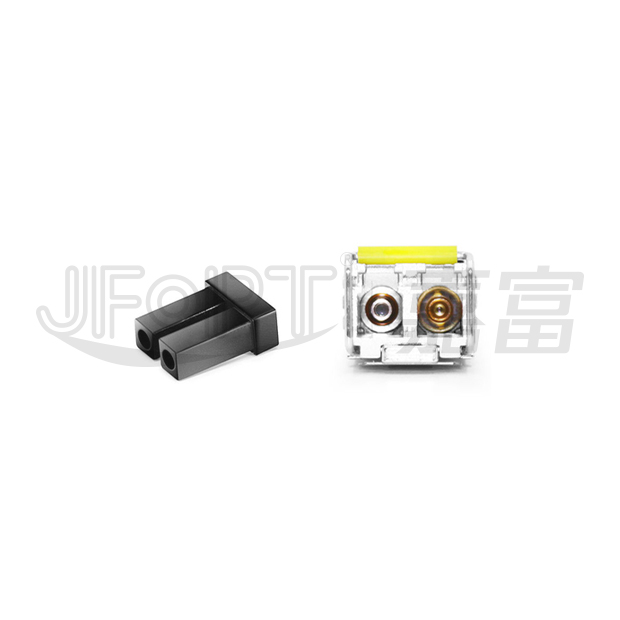

SFP 155M 1550 15/80/100/120/160/200km LC DX光模块
SFP 155M光模块
型   号:JFTSM-SFP-0155-15-15/80/100/120/160/200-LCD
分享:
购买咨询
产品详情
相关资料

产品型号
JFTSM-SFP-0155-15-15/80/100/120/160/200-LCD
工厂品牌
JFOPT嘉富
封装形式
SFP
光口类型
Duplex LC
最高总速率
≤155Mbps
每通道速率
-
最大传输距离
15km 40km 80km 100km 120km 160km 200km
工作波长
1550nm
工作电压
3.3V
光纤型号
SMF
纤芯尺寸
90/125
发射器类型
FP
接收器类型
IDP
发射功率
15KM -15~-8dbm
40KM -8~-3dbm
80KM -5~-0dbm
100KM -3~2dbm
120KM 0~5dbm
160KM 200KM 2~7dbm
接收灵敏度
15KM 40KM -28dBm
 80KM 100KM 120KM -34dBm
160KM -35dBm
200KM -45dBm
数字诊断
YES
接收过载
15KM 40KM -8dBm
80KM 100KM 120KM 160KM 200KM -10dBm
功耗
<1W
支持协议
SFP MSA SFF-8472
工作温度(商业级)
0℃~+70℃
储存温度(商业级)
-40℃~+85℃
工作温度(工业级)
-40℃~+85℃
储存温度(工业级)
-40℃~+85℃




生产线介绍
PRODUCTION LINE INTRODUCTION


JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。





产品介绍
PRODUCT PRESENTATION


JFOPT SFP 155M 1550nm LC DX系列是一款紧凑型单模光模块,专为长距离双工光数据通信设计,支持快速以太网(Fast Ethernet)及OC-3/STM-1 SDH/SONET等应用场景。该小型可插拔模块提供15公里、80公里、100公里、120公里、160公里及200公里等多种传输距离选项,配备20-pin SFP连接器,支持热插拔功能,便于快速部署与维护。单模光纤工作波长为标准的1550nm,适用于长距离单模光纤网络。发射端技术采用高性能多量子阱(MQW)1550nm分布式反馈(DFB)激光器,符合IEC 60825标准的Class 1激光安全规范。接收端技术集成先进光学检测系统,包含:光学接口内嵌的铟镓砷(InGaAs)探测器前置放大器(IDP),实现高灵敏度光信号转换;高精度限幅后置放大器集成电路,确保信号稳定接收与处理。该系列完全遵循SFF-8472多源协议(MSA),保障行业级兼容性与设备间互操作性,可无缝集成至各类网络系统。模块采用LC双工接口,适用于单模光纤环境,满足电信级长距离传输需求。





光模块系列产品
TRANSCEIVER SERIES PRODUCTS






生产及检测设备
PRODUCTION & TESTING EQUIPMENT






产品特点
FEATURES

Operating data rate up to 155Mbps 15km with 9/125 µm SMF
40km with 9/125 µm SMF
80km with 9/125 µm SMF
100km with 9/125 µm SMF
120km with 9/125 µm SMF
160km with 9/125 µm SMF
200km with 9/125 µm SMF
Single 3.3V power supply and TTL control logic interface Hot-pluggable SFP footprint duplex LC connector interface
Operating case temperature
Standard: 0℃~+70℃
Industrial:-40℃~+85℃





应用环境
APPLICATION

Fast ethernet SDH/SONET
ATM switches and routers Other optical links




符合标准
STANDARD COMPLIANCE





订购信息
ORDERING INFORMATION

Part No. Data Rate Fiber Distance Interface Temperature DDMI
JFTSM-SFP-0155-15-15-LCD 155Mbps SMF 15km LC Standard YES
Industrial
JFTSM-SFP-0155-15-80-LCD 155Mbps SMF 80km LC Standard YES
Industrial
JFTSM-SFP-0155-15-100-LCD 155Mbps SMF 100km LC Standard YES
Industrial
JFTSM-SFP-0155-15-120-LCD 155Mbps SMF 120km LC Standard YES
Industrial
JFTSM-SFP-0155-15-160-LCD 155Mbps SMF 160km LC Standard YES
Industrial
JFTSM-SFP-0155-15-200-LCD 155Mbps SMF 200km LC Standard YES
Industrial





绝对最大额定值
ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Min. Max. Unit
Storage temperature TS -4.0  +85
Supply voltage VCC -0.5  3.6  V
Operating relative humidity - - 95  %

Exceeding any one of these values may destroy the device immediately






推荐的操作环境
RECOMMENDED OPERATING ENVIRONMENT

Parameter Symbol Min Typical Max Unit
Operating case temperature Tc JFTSM-SFP-0155-15-15/80/100/120/160/200-LCD 0 - +70  °C
-40 - +85
Power supply voltage Vcc 3.15 3.3 3.45 V
Power supply current Icc - - 300 mA
Date rate OC-3/STM-1 - - 155 - Mbps
100M - - 100 -





性能规格–电气
PERFORMANCE SPECIFICATIONS–ELECTRICAL

Parameter Symbol Min. Typ. Max. Unit Notes

Transmitter

LVPECL inputs(Differential) Vin 400 - 2000 mVpp AC coupled inputs
Input impedance (Differential) Zin 85 100 115 ohm Rin > 100  kohm @ DC
TX_disable Disable - 2 - Vcc+0.3 V -
Enable - 0 - 0.8 -
TX_FAULT Fault - 2 - Vcc+0.3 V -
Normal - 0 - 0.5 -

Receiver

LVPECL outputs (Differential) Vout 400 - 2000 mVpp AC coupled output
Output impedance (Differential) Zout 85 100 115 ohms -
RX_LOS LOS - 2 - Vcc+0.3 V -
Normal - 0 - 0.8 V -
MOD_DEF ( 0:2 ) VoH 2.5 - - V With serial ID
VoL 0 - 0.5 V





光学和电学特性
OPTICAL AND ELECTRICAL CHARACTERISTICS

Parameter Symbol Unit 1550nm FP and PIN, 15km 1550nm DFB and PIN, 40km 1550nm DFB and PIN, 80km
Min. Typical Max. Min. Typical Max. Min. Typical Max.
9µm core diameter SMF L km - 15 - - 40 - - 80 -
Data rate - Mbps - 100/155 - - 100/155 - - 100/155 -

Transmitter

Center wavelength λC nm 1480 1550 1580 1480 1550 1580 1480 1550 1580
Spectral width(RMS) Δλ nm - - 3 - - 1 - - 1
Side mode suppression ratio SMSR dB - - - 30 - - 30 - -
Average output power Pout dBm -15 - -8 -8 - -3 -5 - 0
Extinction ratio ER dB 10 - - 10 - - 10 - -
Rise/Fall time(20%~80%) tr/tf ns - - 2 - - 2 - - 2
Output optical eye - - IUT-T G.957 compliant IUT-T G.957 compliant IUT-T G.957 compliant
TX disable assert time t_off us - - 10 - - 10 - - 10

Receiver

Center wavelength λC nm 1260 - 1600 1260 - 1600 1260 - 1600
Receiver sensitivity Pmin dBm - - -28 - - -28 - - -34
Receiver overload Pmax dBm -8 - - -8 - - -10 - -
Optical path penalty - - - - 1 - - 1 - - 1
LOS de-assert LOSD dBm - - -29 - - -29 - - -35
LOS assert LOSA dBm -42 - - -42 - - -45 - -
LOS hysteresis - dB 0.5 - - 0.5 - - 0.5 - -

Parameter Symbol Unit 1550nm DFB and PIN, 100km 1550nm DFB and PIN, 120km 1550nm DFB and PIN, 160km 1550nm DFB and APD, 200km
Min. Typical Max. Min. Typical Max. Min. Typical Max. Min. Typical Max.
9µm core diameter SMF L km - 100 - - 120 - - 160 - - 200 -
Data rate - Mbps - 100/155 - - 100/155 - - 100/155 - - 100/155 -

Transmitter

Center wavelength λC nm 1480 1550 1580 1480 1550 1580 1480 1550 1580 1480 1550 1580
Spectral width (-20dB) Δλ nm - - 1 - - 1 - - 1 - - 1
Side mode suppression ratio SMSR dB 30 - - 30 - - 30 - - 30 - -
Average output power Pout dBm -3 - 2 0 - 5 2 - 7 2 - 7
Extinction ratio ER dB 10 - - 10 - - 10 - - 10 - -
Rise/Fall time(20%~80%) tr/tf ns - - 2 - - 2 - - 2 - - 2
Output optical eye - - IUT-T G.957 compliant IUT-T G.957 compliant IUT-T G.957 compliant IUT-T G.957 compliant
TX disable assert time t_off us - - 10 - - 10 - - 10 - - 10

Receiver

Center wavelength λC nm 1260 - 1600 1260 - 1600 1260 - 1600 1260 - 1600
Receiver sensitivity Pmin dBm - - -34 - - -34 - - -35 - - -45
Receiver overload Pmax dBm -10 - - -10 - - -10 - - -10 - -
Optical path penalty - - - - 1 - - 1 - - 1 - - 1
LOS de-assert LOSD dBm - - -35 - - -35 - - -36 - - -46
LOS assert LOSA dBm -45 - - -45 - - -45 - - -55 - -
LOS hysteresis - dB 0.5 - - 0.5 - - 0.5 - - 0.5 - -

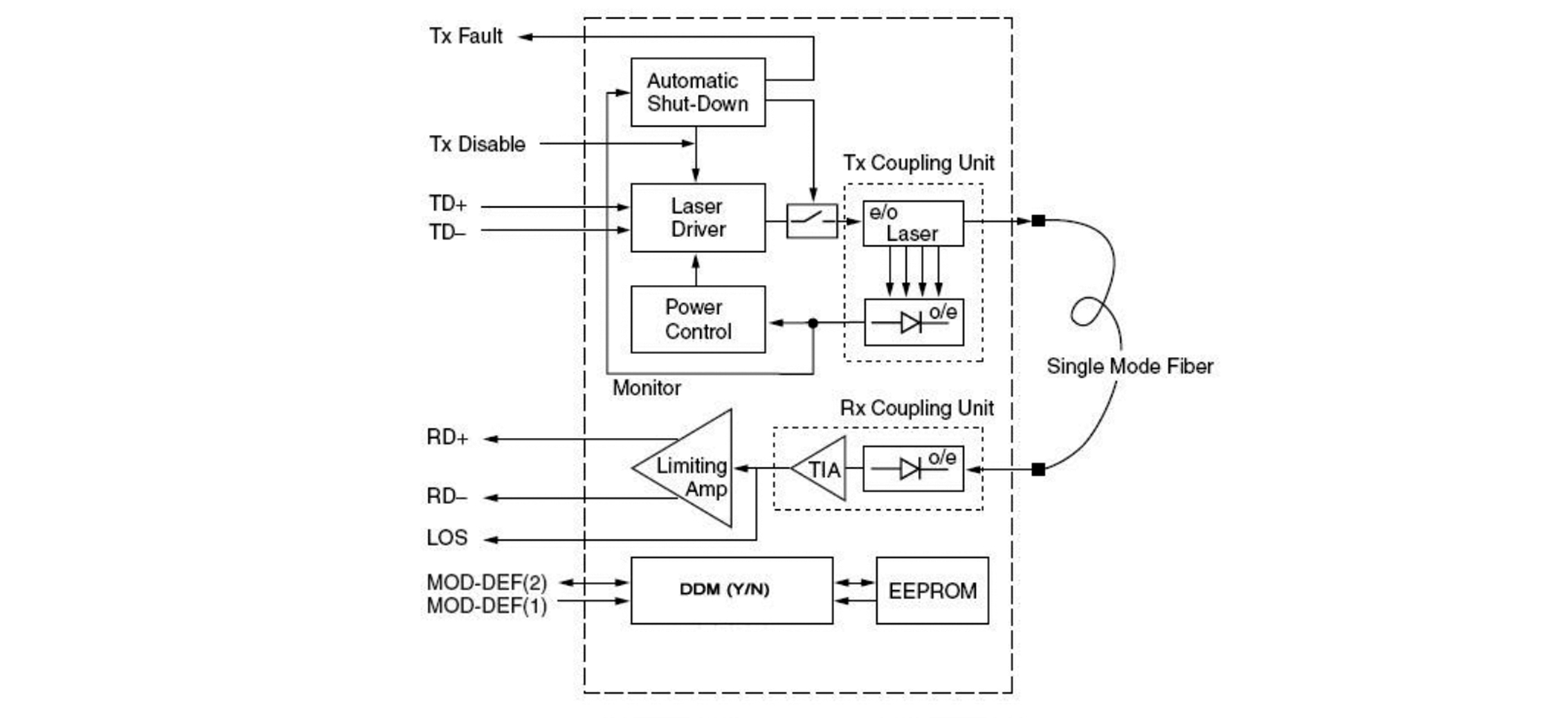

收发器功能描述
FUNCTIONAL DESCRIPTION OF TRANSCEIVER

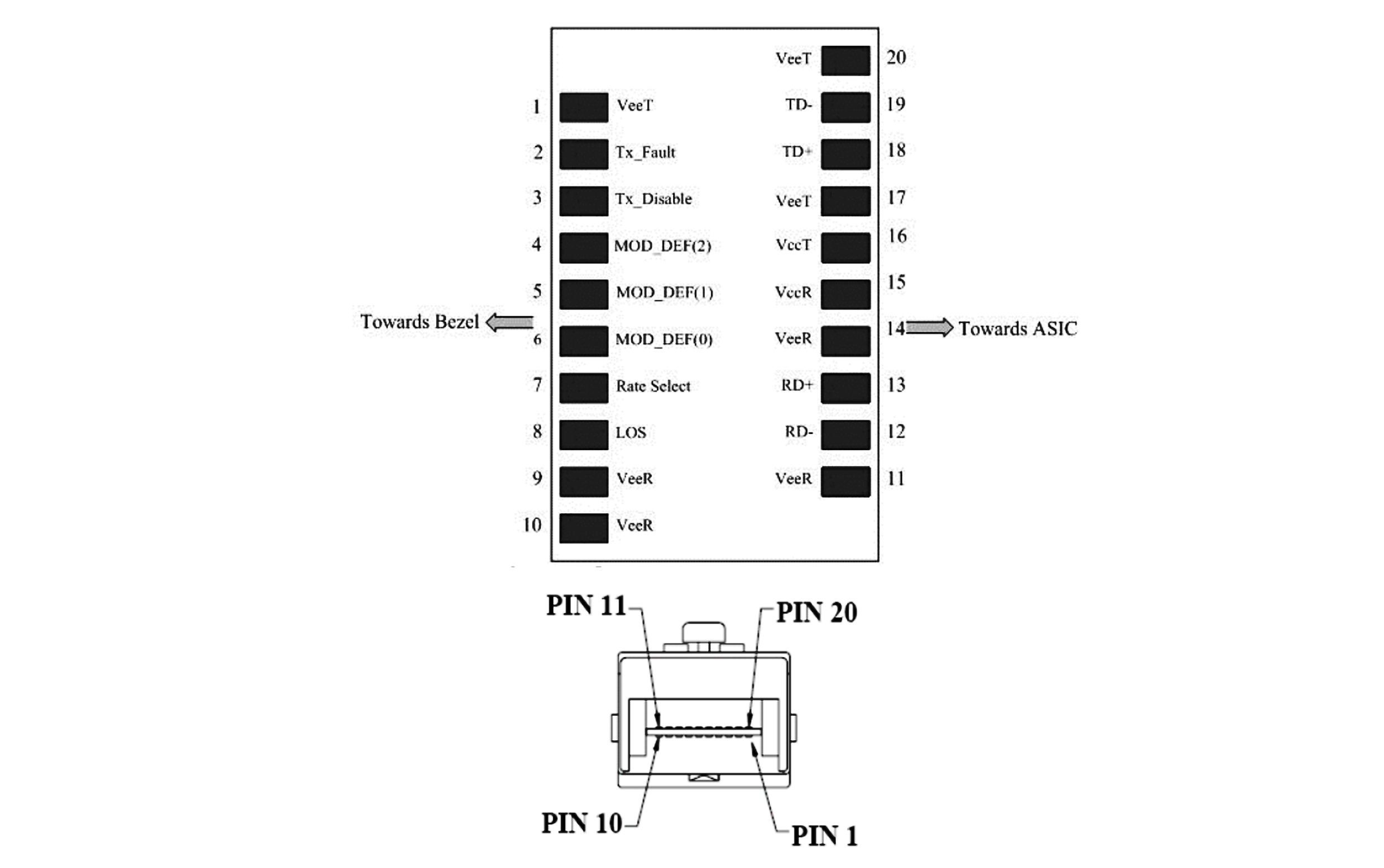

SFP 收发器电气焊盘布局
SFP TRANSCEIVER ELECTRICAL PAD LAYOUT







引脚功能定义
PIN FUNCTION DEFINITIONS

Pin Name Function Plug Seq. Notes
1 VeeT Transmitter ground 1 5)
2 TX fault Transmitter fault indication 3 1)
3 TX disable Transmitter disable 3 2) Module disables on high or open
4 MOD-DEF2 Module definition 2 3 3) 2 wire serial ID interface.
5 MOD-DEF1 Module definition 1 3 3) 2 wire serial ID interface.
6 MOD-DEF0 Module definition 0 3 3) Grounded within the module.
7 Rate select Not connect 3 Function not available
8 LOS Loss of signal 3 4)
9 VeeR Receiver ground 1 5)
10 VeeR Receiver ground 1 5)
11 VeeR Receiver ground 1 5)
12 RD- Inv. received data out 3 6)
13 RD+ Received data out 3 6)
14 VeeR Receiver ground 1 5)
15 VccR Receiver power 2 7) 3.3V ± 5%
16 VccT Transmitter power 2 7) 3.3V ± 5%
17 VeeT Transmitter ground 1 5)
18 TD+ Transmit data In 3 8)
19 TD- Inv. transmit data In 3 8)
20 VeeT Transmitter ground 1 5)

Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10K resistor on the host board. The pull-up voltageshall be VccT or VccR .
Mod-Def 0 is grounded by the module to indicate that the module is present
Mod-Def 1 is the clock line of two wire serial interface for serial ID
Mod-Def 2 is the data line of two wire serial interface for serial ID


4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 400 and 2000 mV differential (200 –1000 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 400 – 2000mV (200 – 1000mV single-ended).




产品包装
PRODUCT PACKAGING





产品认证
PRODUCT CERTIFICATION






质量优势
QUALITY ADVANTAGE





兼容品牌
COMPATIBLE BRANDS
