产品型号
|
JFTSM-SFP+8.5-13-2(LRL)/10(LR)/20(ELR)-LCD
|
工厂品牌
|
JFOPT
|
封装形式
|
SFP+
|
光口类型
|
LC Duplex
|
最高总速率
|
8.5Gbps
|
每通道速率
|
8.5Gbps
|
最大传输距离
|
1.4km,10km,20km
|
||
工作波长
|
1310nm
|
工作电压
|
3.3V
|
光纤型号
|
SMF
|
纤芯尺寸
|
9/125
|
发射器类型
|
FP-LD,DFB
|
接收器类型
|
IDP
|
发射功率
|
-8.2~0.5dBm,-4~0dBm
|
接收灵敏度
|
-14dBm,-15dBm
|
数字诊断
|
YES
|
接收过载
|
0.5dBm
|
功耗
|
<1.0W
|
支持协议
|
MSA SFP+ SFF-8431
|
工作温度(商业级)
|
0℃~+70℃
|
储存温度(商业级)
|
-40℃~+85℃
|
工作温度(工业级)
|
-40℃~+85℃
|
储存温度(工业级)
|
-40℃~+85℃
|
生产线介绍
JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。
产品介绍

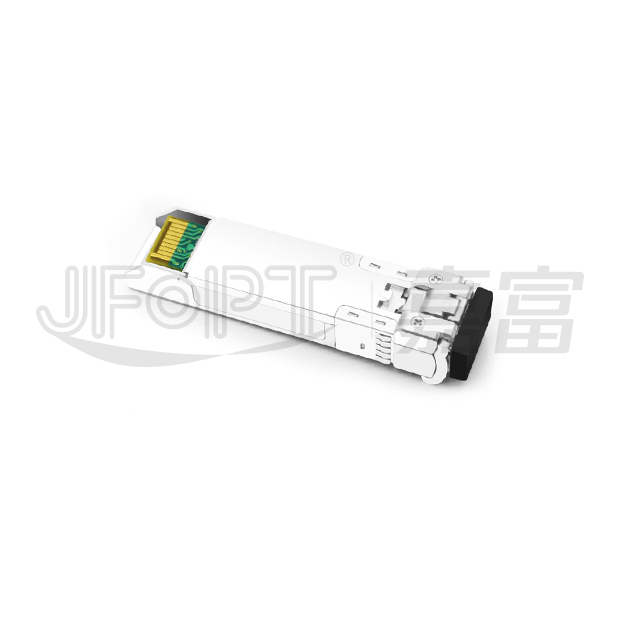

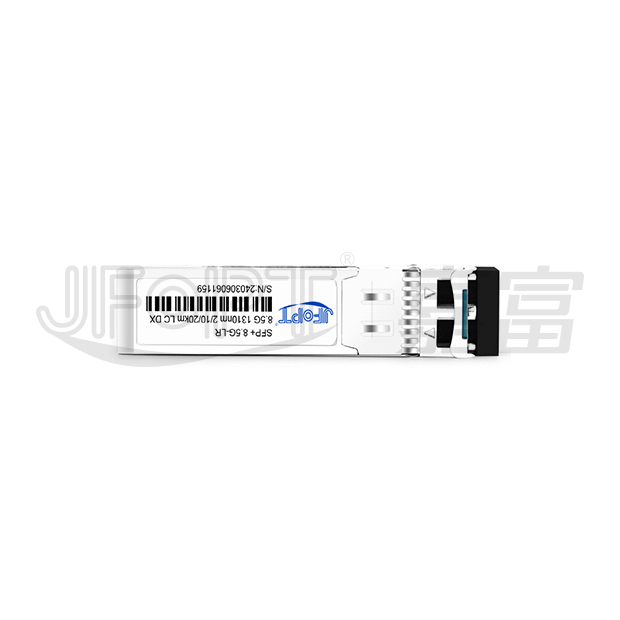

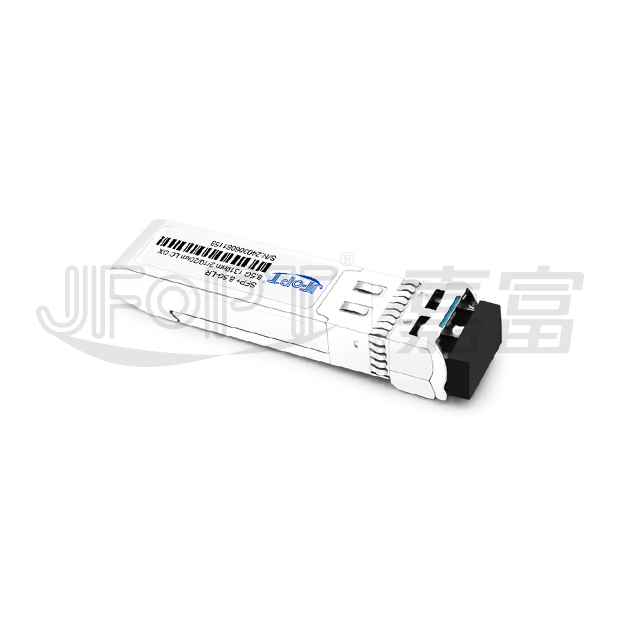

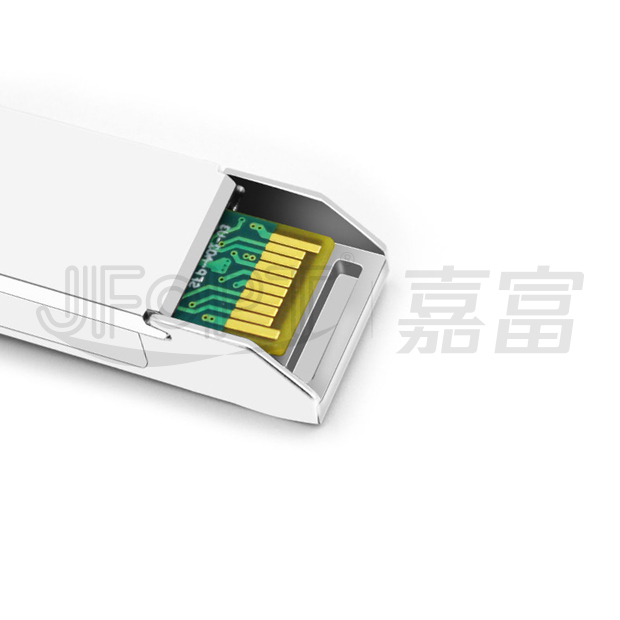

JFOPT嘉富 SFP+ 8.5G 1310nm 1.4/10/20km LC DX单模光模块是一款紧凑型可插拔高速光纤通信模块。该模块采用SFP+ 20针接口设计,支持热插拔功能,专为单模光纤优化设计,工作标称波长为1310nm。发射端搭载符合IEC-60825 Class 1激光安全标准的1310nm多量子阱FP激光器;接收端采用光头部集成铟镓砷探测器前置放大器(IDP),并配合限幅后置放大器集成电路,实现增强型信号处理。
光模块系列产品
生产及检测设备
产品特点
Operating data rate up to 8.5Gbps | 1310nm FP-LD transmitter | ||||||||
Distance up to 20km | Single 3.3V power supply and TTL logic interface | ||||||||
Compliant with SFP MSA |
Operating case temperature:
Extended:-10℃~70℃
Industrial: -40℃~85℃
|
||||||||

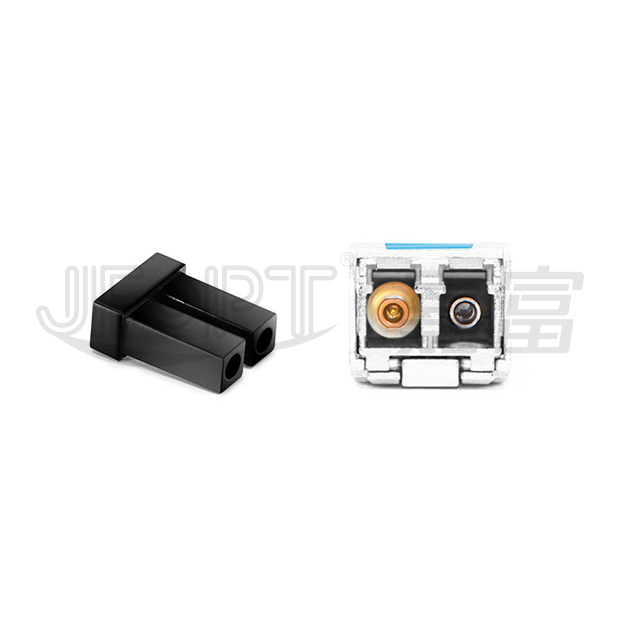

Duplex LC connector interface | Hot pluggable | ||||||||
Power dissipation < 1.0W | Compliant with MSA SFP+ Specification SFF-8431 |
应用范围
8G fiber channe | OBSAI rates 6.144 Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768Gb/s | ||||||||
CPRI rates 7.373Gb/s, 6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s | Other optical links | ||||||||
8XFC at 8.5Gbps;4XFC at 4.25Gpbs;2XFC at 2.125Gpbs;1XFC at 1.0625Gbps |
符合标准
订购信息
Part No. | Data Rate | Laser | Fiber Type | Distance | Optical Interface | Temp. | DDMI | |
JFTSM-SFP+8.5-13-2(LRL)/10(LR)/20(ELR)-LCD | 0.614Mbps~8.5Gbps | 1310nm DFP | SMF | 1.4km | LC | Standard | YES | |
0.614Gbps to 8.5Gbps |
1310nm DFB | SMF | 10km | LC | Standard | YES | ||
0.614Gbps to 8.5Gbps |
1310nm DFB | SMF | 20km | LC | Standard | YES |
绝对最大额定值
Parameter | Symbol | Min. | Max. | Unit | ||||
Storage temperature | TS | -40 | +85 | °C | ||||
Supply voltage | VCC | -0.5 | 3.6 | V | ||||
Input voltage | Vin | -0.5 | Vcc | V | ||||
Output current | Io | - | 50 | mA |
建议操作条件
Parameter | Symbol | Min. | Typical | Max. | Unit | |||
Operating case temperature | TC | Standard | 0 | - | +70 | °C | ||
Industrial | -40 | - | +85 | |||||
Power supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | |||
Power supply current | ICC | - | - | 300 | mA | |||
Surge current | ISurge | - | - | +30 | mA |
性能规范–电气
Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | ||
Transmitter |
||||||||
CML Inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs | ||
Input AC common mode voltage | 0 | - | 25 | mV | RMS | |||
Input impedance(Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohms @ DC | ||
Differential Input S-parameter | SDD 11 | - | - | -10 | dB | - | ||
Differential to common mode conversion | SCD 11 | - | - |
![]() -10
|
![]() dB
|
- | ||
Tx_DISABLE input voltage–high | - | 2.0 | - | Vcc+0.3 | V | - | ||
Tx_DISABLE input voltage–low | - | 0 | - | 0.8 | V | - | ||
Tx_FAULT output voltage–high | - | 2.0 | - | Vcc | V | Io = 400µA; Host Vcc | ||
Tx_FAULT output voltage–low | - | - | - | 0.5 | V | Io = -4.0mA | ||
Receiver |
||||||||
CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | ||
Mode voltage | 0 | - | 15 | mV | RMS | |||
Output impedance(Differential) | Zout | 90 | 100 | 110 | ohm | - | ||
Differential output S-parameter | SD22 | - | - | - 10 | dB | - | ||
Rx_LOS output voltage–high |
- | 2.0 | - | Vcc+0.3 | V | lo = 400µA; Host Vcc | ||
Rx_LOS output voltage–low |
- | 0 | - | 0.8 | V | lo = -4.0mA | ||
MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With serial ID | ||
VoL | 0 | - | 0.5 | V |
性能规格–光学
Parameter | Symbol | Unit | (SFP+ 8.5G 1310nm 1.4km LC DX) | (SFP+ 8.5G 1310nm 10km LC DX) | (SFP+ 8.5G 1310nm 20km LC DX) | ||||||||
Min. | Typical | Max. | Min. | Typical | Max. | Min. | Typical | Max. | |||||
9µm core diameter SMF supported distance | - | km | - | 1.4 | - | - | - | 10 | - | - | 20 | ||
Data Rate | - | Gbps | 0.614 | - | 8.5 | 0.614 | - | 8.5 | 0.614 | - | 8.5 | ||
Transmitter |
|||||||||||||
Centre wavelength | λC | nm | 1260 | 1310 | 1355 | 1270 | 1310 | 1355 | 1270 | 1310 | 1355 | ||
Spectral width | Δλ | nm | - | - | - | - | - | 1 | - | - | 1 | ||
Side mode suppression ratio | SMSR | dB | - | - | 3 | 30 | - | - | 30 | - | - | ||
Average output power | Pout | dBm | -8.2 | - | 0.5 | -8.2 | - | +0.5 | -4 | - | 0 | ||
Extinction ratio | ER | dB | 3.5 | - | 3.5 | - | - | 3.5 | - | - | |||
Transmitter dispersion penalty | TDP | dB | - | - | 5.2 | - | - | - | - | - | - | ||
Input differential impedance | ZIN | Ω | 90 | 100 | 110 | - | - | - | - | - | - | ||
Average power of OFF transmitter | Poff | dBm | - | - | 10 | - | - | -30 | - | -30 | |||
TX disable assert time | t_off | us | - | - | 1 | - | - | 10 | - | - | 10 | ||
TX_DISABLE negate time | t_on | ms | 10 | - | - | - | - | 1 | - | - | 1 | ||
TX_BISABLE time to start reset | t_reset | us | - | - | 300 | 10 | - | - | 10 | - | - | ||
Time to initialize, include reset of TX_FAULT | t_init | ms | - | - | 100 | - | - | 300 | - | - | 300 | ||
TX_FAULT from fault to assertion | t_fault | us | - | - | - | - | - | 100 | - | - | 100 | ||
Total Jitter | TJ | UI(p-p) | - | - | - | - | - | 0.28 | - | - | 0.28 | ||
Data dependant jitter | DDJ | UI(p-p) | - | - | - | - | - | 0.1 | - | - | 0.1 | ||
Uncorrelated jitter | UJ | RMS | - | - | - | - | - | 0.023 | - | - | 0.023 | ||
Receiver |
|||||||||||||
Centre wavelength | λ | nm | 1260 | - | 1565 | 1260 | - | 1565 | 1260 | - | 1565 | ||
Sensitivity | Pmin | dBm | - | - | -14 | - | - | -15 | - | - | -15 | ||
Receiver overload | Pmax | dBm | 0.5 | - | - | 0.5 | - | - | 0.5 | - | - | ||
Optical return loss | ORL | dB | - | - | -12 | - | - | -12 | - | - | -12 | ||
LOS De-Assert | LOSD | dBm | - | - | -16 | - | - | -17 | - | - | -17 | ||
LOS Assert | LOSA | dBm | -28 | - | - | -29 | - | - | -29 | - | - |

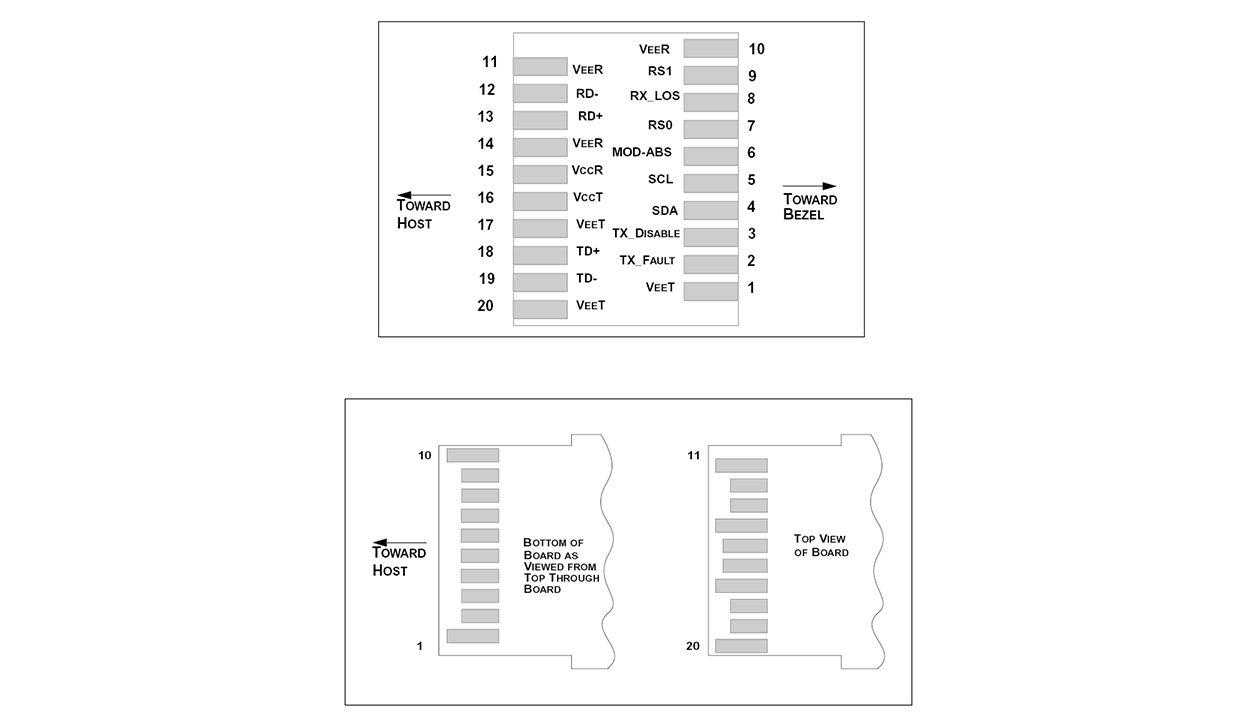

SFP+收发器电气焊盘布局
引脚说明
Pin Num. | Name | Function | Plug Seq. | Notes | ||||
1 | VeeT | Transmitter ground | 1 | Note 5 | ||||
2 | TX Fault | Transmitter fault indication | 3 | Note 1 | ||||
3 | TX Disable |
Transmitter disable | 3 | Note 2, Module disables on high or open | ||||
4 | SDA | Module definition 2 | 3 | Data line for serial ID. | ||||
5 | SCL | Module definition 1 | 3 | Clock line for serial ID. | ||||
6 | MOD-ABS | Module definition 0 | 3 | Note 3 | ||||
7 | RS0 | RX rate select(LVTTL). | 3 | No function implement.. | ||||
8 | LOS | Loss of signal | 3 | Note 4 | ||||
9 | RS1 | TX rate select(LVTTL). | 1 | No function implement.. | ||||
10 | VeeR | Receiver ground | 1 | Note 5 | ||||
11 | VeeR | Receiver ground | 1 | Note 5 | ||||
12 | RD- | Inv. Received data out | 3 | Note 6 | ||||
13 | RD+ | Received data out | 3 | Note 7 | ||||
14 | VeeR | Receiver ground | 1 | Note 5 | ||||
15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | ||||
16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | ||||
17 | VeeT | Transmitter ground | 1 | Note 5 | ||||
18 | TD+ | Transmit data in | 3 | Note 8 | ||||
19 | TD- | Inv. Transmit data in | 3 | Note 8 | ||||
20 | VeeT | Transmitter ground | 1 | Note 5 |
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K–10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Module Absent, connected to VeeT or VeeR in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP+ module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
9) Rate select can also be set through the 2-wire bus in accordance with SFF-8472 v. 10.13. Rx Rate Select is set at Bit 3, Byte 110, Address A2h. Tx Rate Select is set at Bit 3, Byte 118, Address A2h. Writing a “1” selects maximum bandwidth operation. Rate select is the logic OR of the input state of Rate Select Pin and 2-wire bus.
