产品型号
|
JFTSM-SFP+8.5-85-03(SR)-LCD
|
工厂品牌
|
JFOPT嘉富
|
封装形式
|
SFP+
|
光口类型
|
LC Duplex
|
最高总速率
|
8.5Gbps
|
每通道速率
|
8.5Gbps
|
OM3最大传输距离
|
300m
|
OM4最大传输距离
|
300m
|
工作波长
|
850nm
|
工作电压
|
3.3V
|
光纤型号
|
MMF
|
纤芯尺寸
|
50/125
|
发射器类型
|
VCSEL
|
接收器类型
|
IDP
|
发射功率
|
-6~-1dBm
|
接收灵敏度
|
-11.1dBm
|
数字诊断
|
YES
|
接收过载
|
0dBm
|
功耗
|
<1.0W
|
支持协议
|
MSA SFP+ ,SFF-8431
|
工作温度(商业级)
|
0℃~+70℃
|
储存温度(商业级)
|
-40℃~+85℃
|
工作温度(工业级)
|
-40℃~+85℃
|
储存温度(工业级)
|
-40℃~+85℃
|
JFOPT嘉富持续投入光模块生产领域,产品覆盖1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模块。同时为下游同行提供TOSA、ROSA、BOSA等光器件半成品解决方案。JFOPT嘉富生产线具备日产量一万只光模块、两万只光器件的能力。此外,JFOPT嘉富光模块拥有业界领先的耐高温、抗干扰特性,广泛应用于计算中心、运营商、交通安防、电力设施等行业领域。

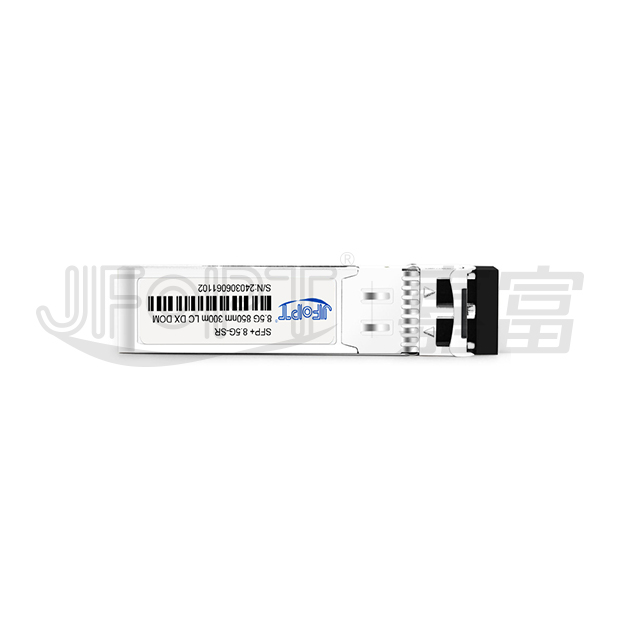

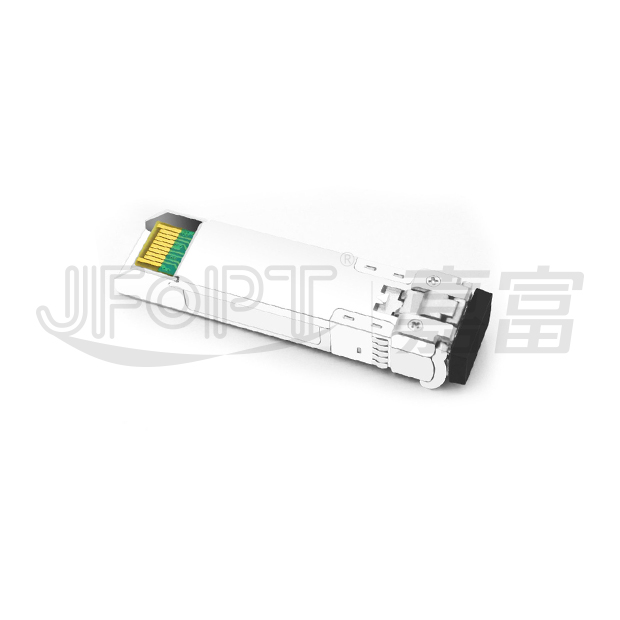

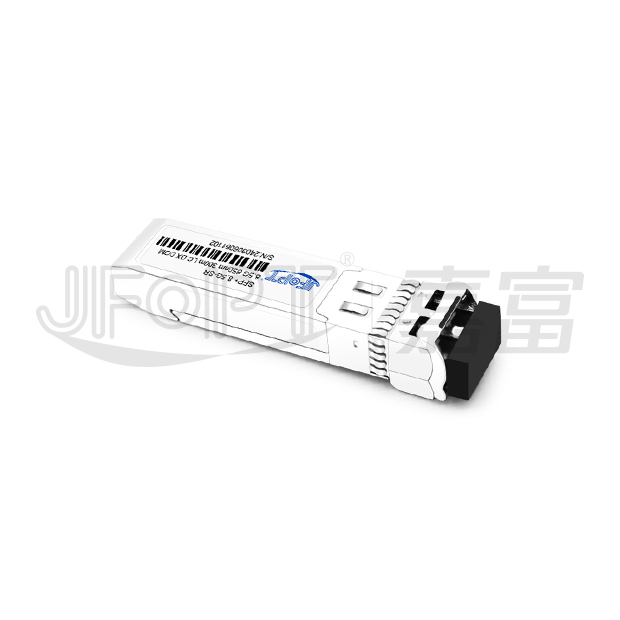

JFOPT嘉富SFP+ 8.5G 850nm 300m SR LC DX多模光模块是一种紧凑型可插拔模块,专为X1/X2/X4/X8光纤通道等串行光数据通信应用而设计。配备20-pin SFP+连接器,支持热插拔功能。数字诊断可通过I2C接口访问。该模块针对多模光纤进行了优化,工作波长为850nm。其发射器采用垂直腔面发射激光器 (VCSEL),符合IEC 60825的1级激光安全标准。接收器部分在光学头内配备集成的GaAs探测器前置放大器(IDP),以及用于增强信号处理的限幅后置放大器IC。

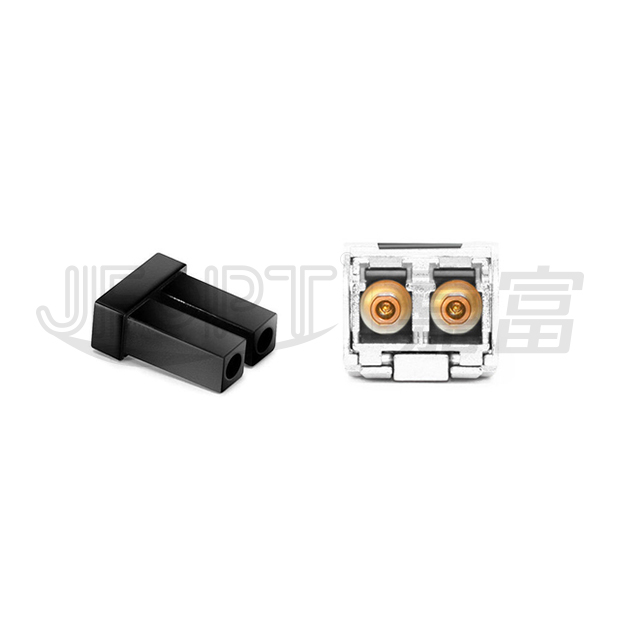

Operating data rate up to 8.5Gbps | 850nm VCSEL transmitter | ||||||||
Distance up to 300m @50 / 125 um MMF | Single 3.3V power supply and TTL logic interface | ||||||||
Duplex LC connector interface, hot pluggable | Compliant with MSA SFP+ specification SFF-8431 | ||||||||
Power dissipation < 1.0W | Dispersion tolerance up to 40ps/nm over G.651 |
1000 Base-LX Ethernet | 8XFC at 8.5Gbps;4XFC at 4.25Gpbs;2XFC at 2.125Gpbs;1xFC at 1.0625Gbps | ||||||||
OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s, 0.768Gb/s | CPRI rates 7.373Gb/s, 6.144 Gb/s,4.915 Gb/s, 2.458 Gb/s, 1.229 Gb/s,0.614Gb/s | ||||||||
Other optical links |
Part No. | Data Rate | Laser | Fiber Type | Distance | Temp. | DDMI | ||
JFTSM-SFP+8.5-85-03(SR)-LCD | 0.614Gbps to 8.5Gbps | 850nm VCSEL | MMF | 300m | Standard | YES | ||
0.614Gbps to 8.5Gbps | 850nm VCSEL | MMF | 300m | Industrial | YES |
Parameter | Symbol | Min. | Max. | Unit | ||||
Storage temperature | TS | -40 | +85 | °C | ||||
Supply voltage | VCC | -0.5 | 3.6 | V | ||||
Input voltage | Vin | -0.5 | Vcc | V | ||||
Output current | Io | - | 50 | mA |
Parameter | Symbol | Min. | Typical | Max. | Unit | |||
Operating case temperature |
Tc | JFTSM-SFP+8.5-85-03(SR)-LCD | 0 | - | 70 | °C | ||
-40 | - | 85 | ||||||
Power supply voltage | VCC | 3.15 | 3.3 | 3.45 | V | |||
Power supply current | ICC | - | - | 300 | mA | |||
Surge current | ISurge | - | - | 30 | mA | |||
Baud rate | 8XFC | 0.614 | - | 8.5 | Gbps |
Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | ||
Transmitter |
||||||||
CML Inputs(Differential) | Vin | 150 | - | 1200 | mVpp | AC coupled inputs | ||
Input Impedance (Differential) | Zin | 85 | 100 | 115 | ohms | Rin > 100 kohms @ DC | ||
Tx_DISABLE Input Voltage – High | - | 2 | - | Vcc+0.3 | V | - | ||
Tx_DISABLE Input Voltage – Low | - | 0 | - | 0.8 | V | - | ||
Tx_FAULT Output Voltage – High | - | 2 | - | Vcc+0.3 | V | Io = 400µA; Host Vcc | ||
Tx_FAULT Output Voltage – Low | - | 0 | - | 0.8 | V | Io = -4.0mA | ||
Receiver |
||||||||
CML Outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | ||
Output Impedance (Differential) | Zout | 85 | 100 | 115 | ohms | - | ||
Rx_LOS Output Voltage – High | - | 2 | - | Vcc+0.3 | V | lo = 400µA; Host Vcc | ||
Rx_LOS Output Voltage – Low | - | 0 | - | 0.8 | V | lo = -4.0mA | ||
MOD_DEF ( 2:0 ) | VoH | 2.5 | - | - | V | With Serial ID | ||
VoL | 0 | - | 0.5 | V |
Parameter | Symbol | Min. | Typical | Max. | Unit | |||
50 / 125 um MMF | - | - | 300 | - | m | |||
Data rate | - | 0.614 | - | 8.5 | Gbps | |||
Transmitter |
||||||||
Centre wavelength | λC | 840 | 850 | 860 | nm | |||
Spectral width (RMS) | Δλ | - | - | 0.45 | nm | |||
Average output power | Pout | -6 | - | -1 | dBm | |||
Extinction ratio | ER | 3 | 5 | - | dB | |||
Output optical eye | IEEE 802.3-2005 Compliant | |||||||
Transmitter dispersion penalty | TDP | - | - | 3.9 | dB | |||
Input differential impedance | ZIN | 90 | 100 | 110 | Q | |||
TX Disable | Disable | - | 2 | - | Vcc+0.3 | V | ||
Enable | 0 | - | 0.8 | |||||
TX_Fault | Fault | - | 2 | - | VCC+0.3 | V | ||
Normal | 0 | - | 0.8 | |||||
TX_Disable assert time | t_off | - | - | 10 | us | |||
TX_DISABLE negate time | t_on | - | - | 1 | ms | |||
TX_BISABLE time to start reset | t_reset | 10 | - | - | us | |||
Time to initialize, include reset of TX_FAULT | t_init | - | - | 300 | ms | |||
TX_FAULT from fault to assertion | t_fault | - | - | 100 | us | |||
Total jitter | TJ | - | - | 0.28 | UI(p-p) | |||
Data dependant jitter | DDJ | - | - | 0.1 | UI(p-p) | |||
Uncorrelated jitter | UJ | - | - | 0.023 | RMS | |||
Receiver |
||||||||
Centre wavelength | λC | 840 | 850 | 860 | nm | |||
Receiver sensitivity | Pmin | - | - | -11.1 | dBm | |||
Output differential impedance | RIN | 90 | 100 | 110 | Q | |||
Receiver overload2 | Pmax | 0 | - | dBm | ||||
Optical return loss | ORL | - | - | -12 | dB | |||
LOS de-assert | LOSD | - | - | -12.5 | dBm | |||
LOS assert | LOSA | -25 | - | - | dBm | |||
LOS hysteresis | - | 0.5 | - | - | dB | |||
LOS | High | - | 2 | - | VCC+0.3 | V | ||
Low | - | 0 | - | 0.8 |
Note 2: Measured with a PRBS 231 -1 test pattern @ 8.5Gbps, BER≤10-12

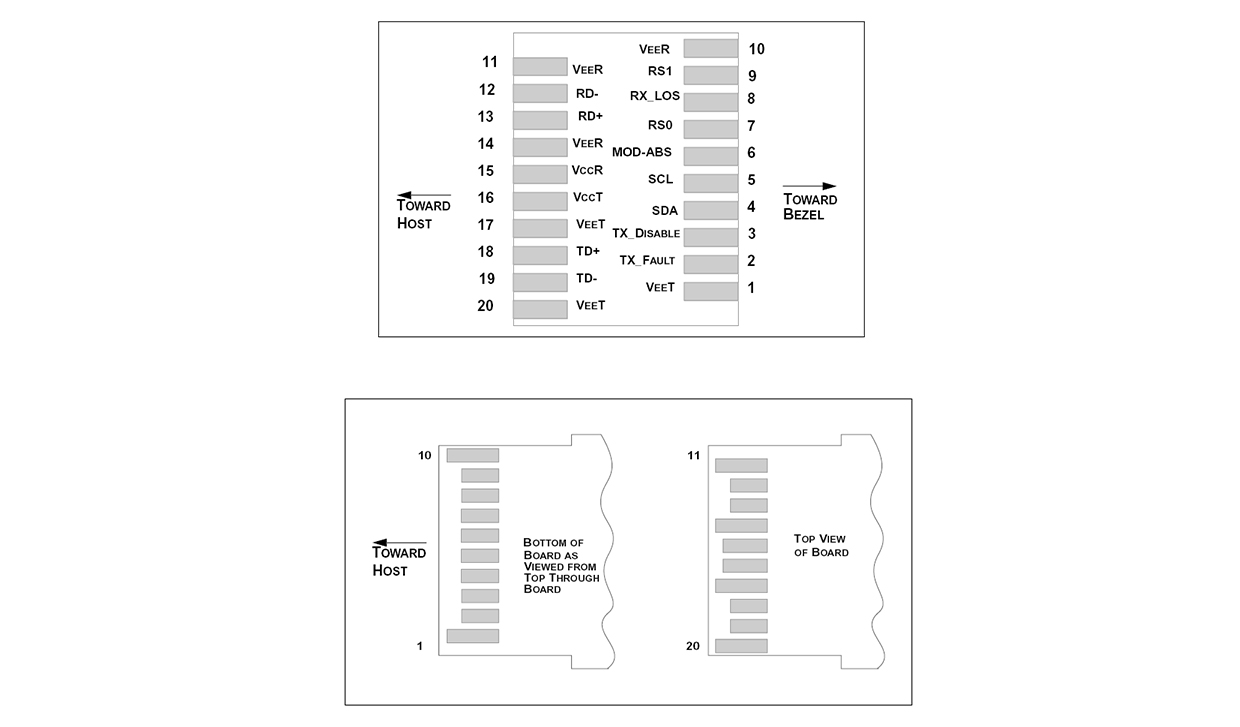

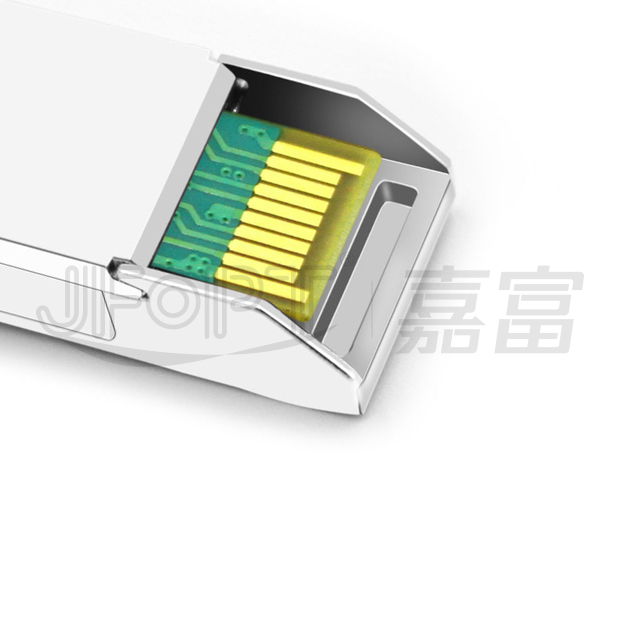

Pin Num. | Name | Function | Plug Seq. | Notes | ||||
1 | VeeT | Transmitter ground | 1 | - | ||||
2 | TX Fault | Transmitter fault indication | 3 | Note 1 | ||||
3 | TX Disable | Transmitter disable | 3 | Note 2, Module disables on high or open | ||||
4 | SDA | Module definition 2 | 3 | Data line for serial ID. | ||||
5 | SCL | Module definition 1 | 3 | Clock line for serial ID. | ||||
6 | MOD-ABS | Module definition 0 | 3 | Note 3 | ||||
7 | RS0 | RX rate select (LVTTL). | 3 | No function implement.. | ||||
8 | LOS | Loss of signal | 3 | Note 4 | ||||
9 | RS1 | TX rate select (LVTTL). | 1 | No function implement.. | ||||
10 | VeeR | Receiver ground | 1 | Note 5 | ||||
11 | VeeR | Receiver ground | 1 | Note 5 | ||||
12 | RD- | Inv. Received data out | 3 | Note 6 | ||||
13 | RD+ | Received data out | 3 | Note 6 | ||||
14 | VeeR | Receiver ground | 1 | Note 5 | ||||
15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | ||||
16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | ||||
17 | VeeT | Transmitter ground | 1 | Note 5 | ||||
18 | TD+ | Transmit data in | 3 | Note 8 | ||||
19 | TD- | Inv. Transmit data in | 3 | Note 8 | ||||
20 | VeeT | Transmitter ground | 1 | Note 5 |
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7KΩ – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7KΩ~10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined High
(2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled
3) Module Absent, connected to VeeT or VeeR in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7KΩ –10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP+ module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 370 and 700 mV differential (185 –350 mV single ended) when properly terminated.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended), though it is recommended that values between 150 and 1200 mV differential (75 – 600mV single-ended) be used for best EMI performance.
